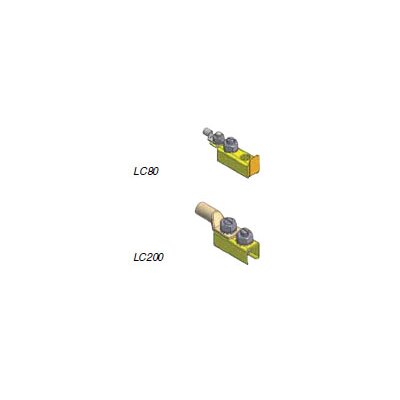

All line feed systems require clamp holders and feed clamps to connect the copper conductors within the rail housing to the cores of the supply cable . There are 2 types of feed clamps: LC80 and LC200. To connect the copper conductors to a cable terminal in a transition box, the transition cables OK25 or OK35 can be used.
To be applied for mounting copper conductors Cu35 - Cu80.
To be applied for mounting copper conductors Cu125 - Cu160.

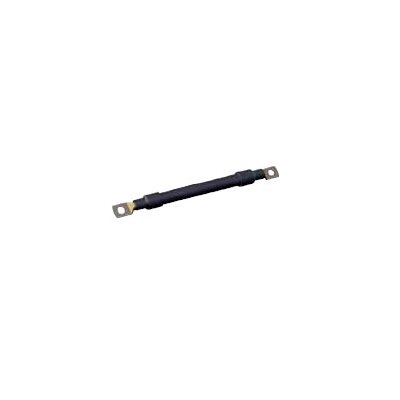

Cable 1x 25 mm2, length 1,5 m, fitted with cable lugs on both sides. For max. current capacity 125A or 250A (with 2 cables in parallel connection) and Cu125 copper conductor. To be used with Transition box OGV320.
Cable 1x 35 mm2, length 1,5 m, fitted with cable lugs on both sides. For max. current capacity 320A (with 2 cables in parallel connection and Cu160 copper conductor). To be used with Transition box OGV320.

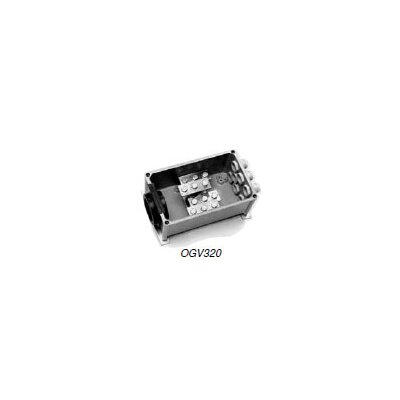

Transition box for for feed connection Multiconductor:
Complete with 2x5 bolts M10 for cable lug connections, 7 glands PG21 and a special grommet for cables of Ø20 - Ø75 mm.
