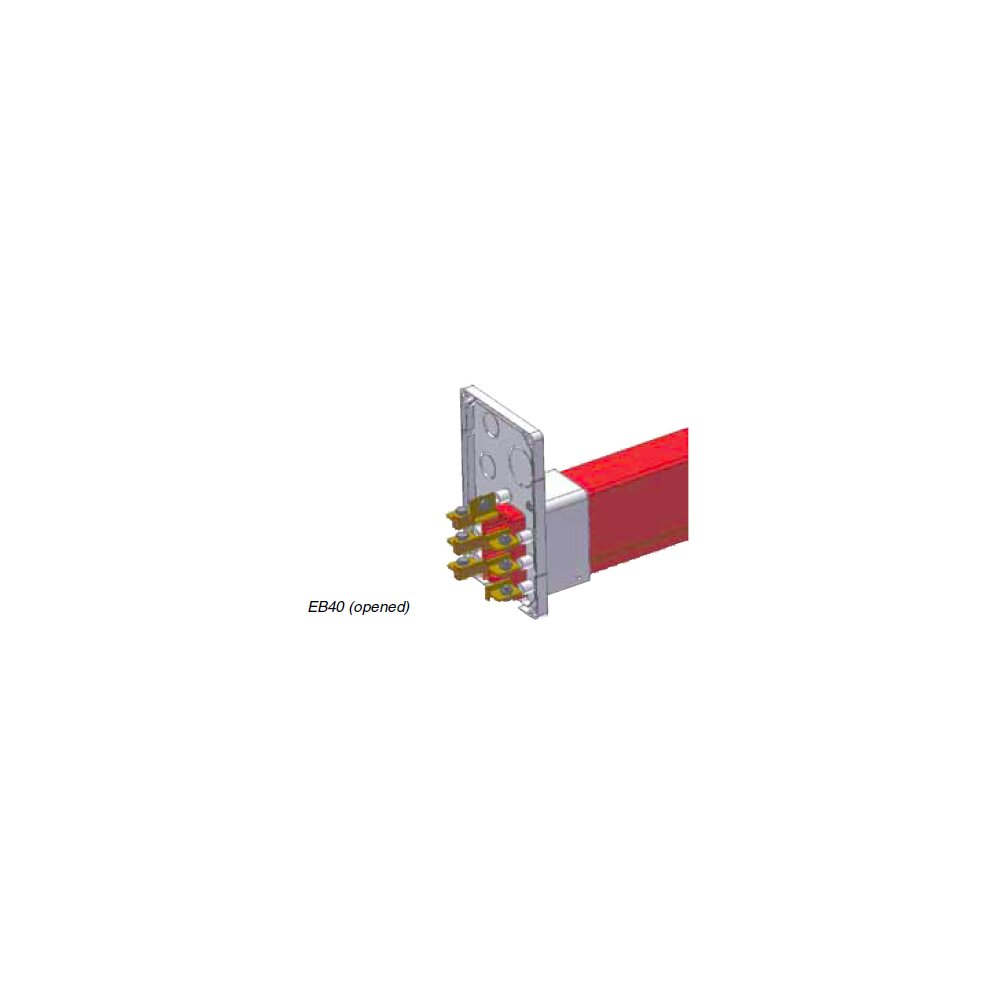

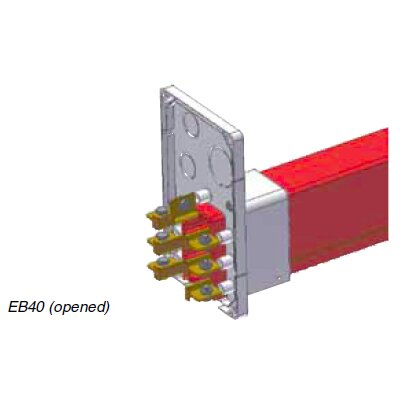

End feed boxes are used for the connection of the feeder cable to the extreme end of the Click-Ductor system (see picture). All feed boxes are fitted with metric glands. It is possible to use extra glands and/or several diameter ranges from type EB40.
End feed clamps are required for connection of copper conductors 125A or 160A (see details below).

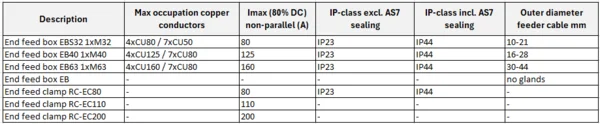

End feed boxes:

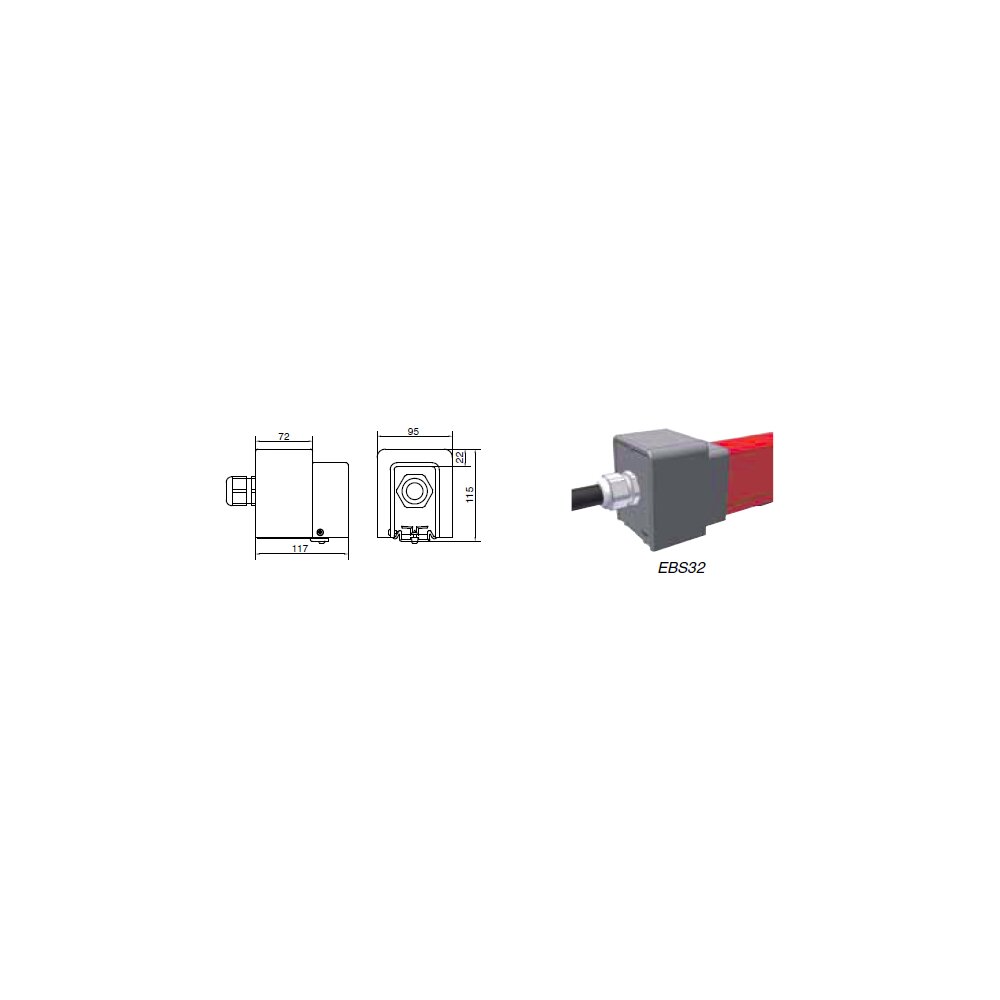

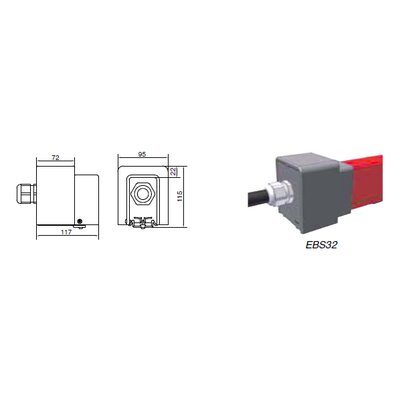

Compact end feed box with cable gland M32, suitable for cables Ø10-Ø21 mm. Connecting screws M6 included.

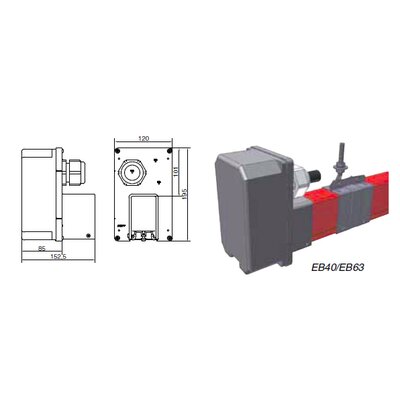

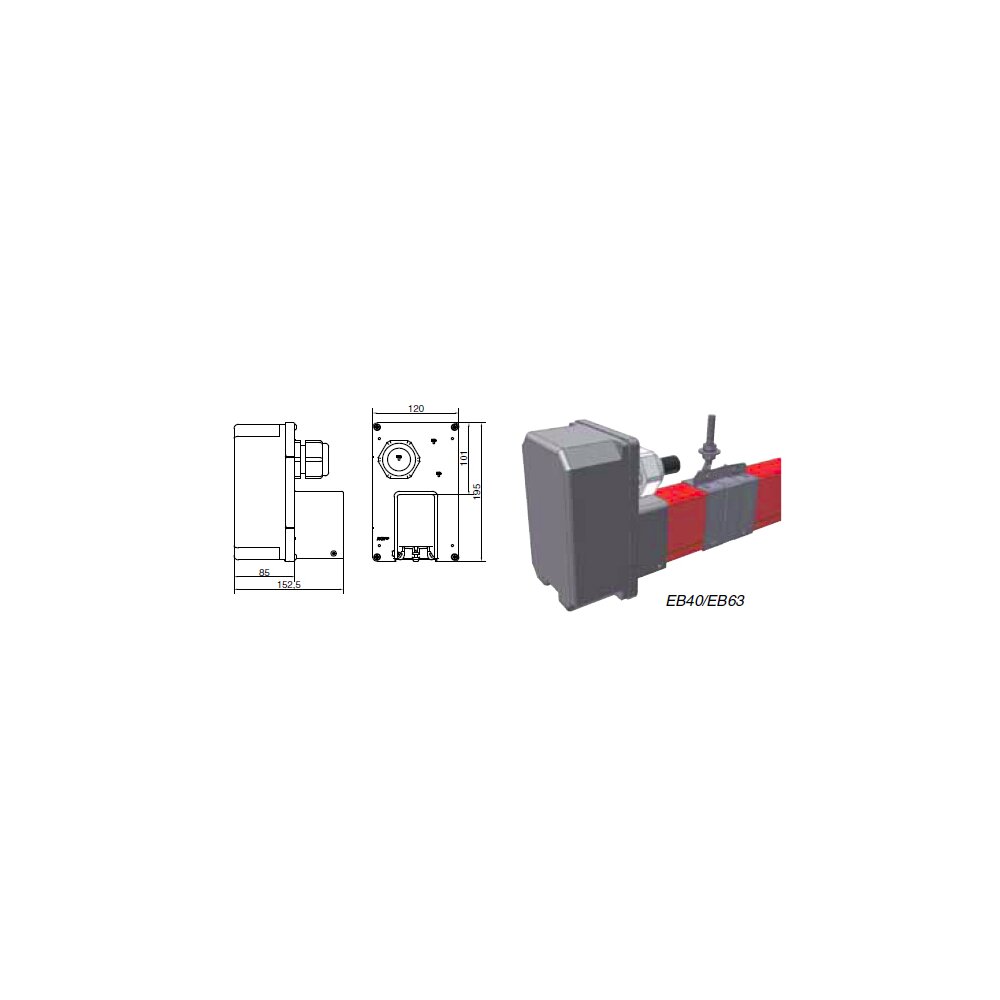

End feed box for with cable gland M40, suitable for cables Ø16-Ø28 mm. The pushthrough holes offer easy mounting of various cable glands. Connecting screws M6 included.
Type EB63 As end feed box EB40, with cable gland M63, suitable for cables Ø30-Ø44,5 mm.

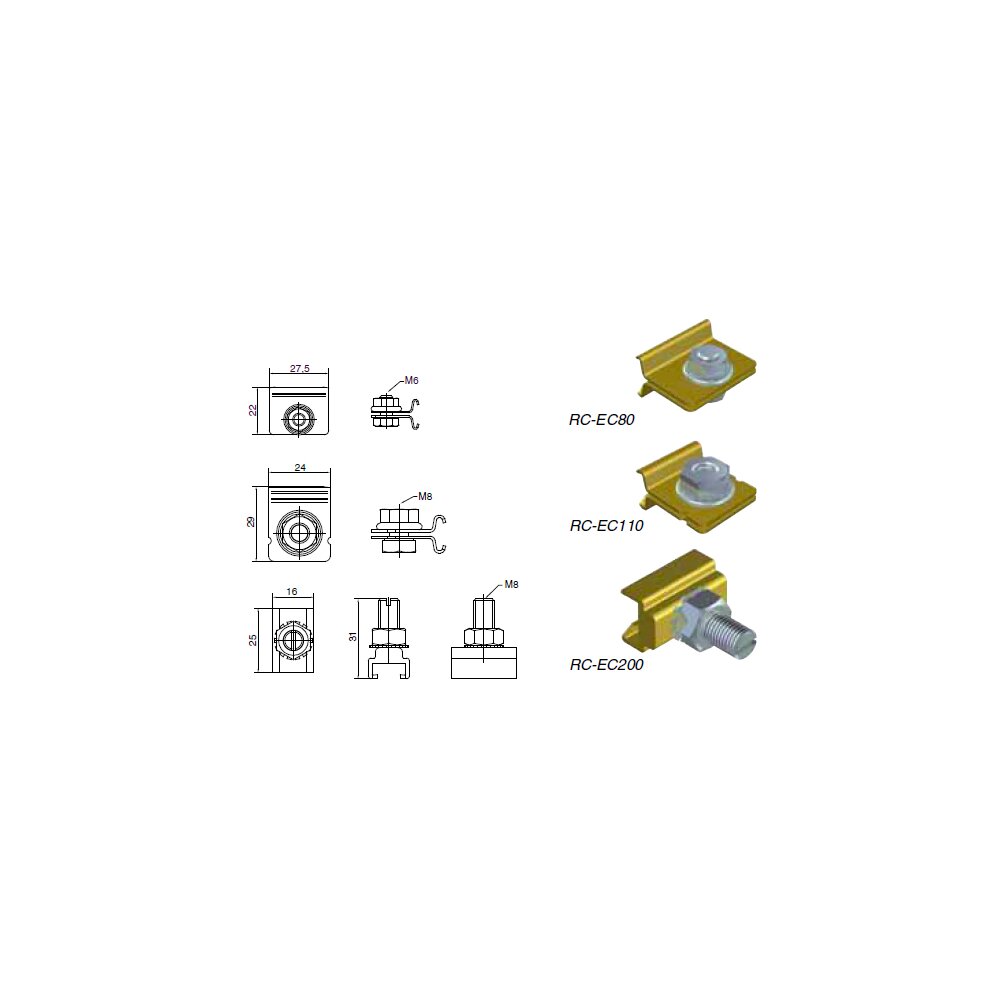

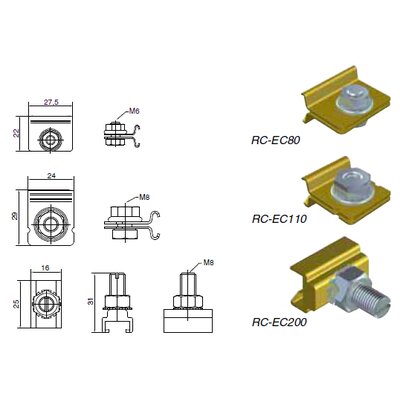

End feed clamps:
Required for connecting copper conductors Cu50A or Cu80 to the end feed box. To be ordered separately.
Required for connecting copper conductors Cu110 to the end feed box. To be ordered separately.
Required for connecting copper conductors 125A, 160A or 200A to the end feed box. Premounted on every Click-Ductor section; no separate ordering required.
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
