Click-Ductor transition box for collector trolleys

E-mailView PDF

A transition box can be mounted on the towing arm or close by the apparatus/machine. This unit facilitates the connection of the flexible cable from the collector trolley with the fixed wiring from the apparatus/machine being fed.

Show more

Show all variants

Part code:

Filters & subcategories

Show results

Note: The box types TTB35 up to TTB140 can be mounted directly on the fastening clamp of the towing arm type BMV.
The box types OG200 and OG300 are supplied with a mounting plate, which ensures easy mounting of these boxes to the apparatus to be fed.

A transition box can be mounted on the towing arm or close by the apparatus/machine. This unit facilitates the connection of the flexible cable from the collector trolley with the fixed wiring from the apparatus/machine being fed.

      Measurements.

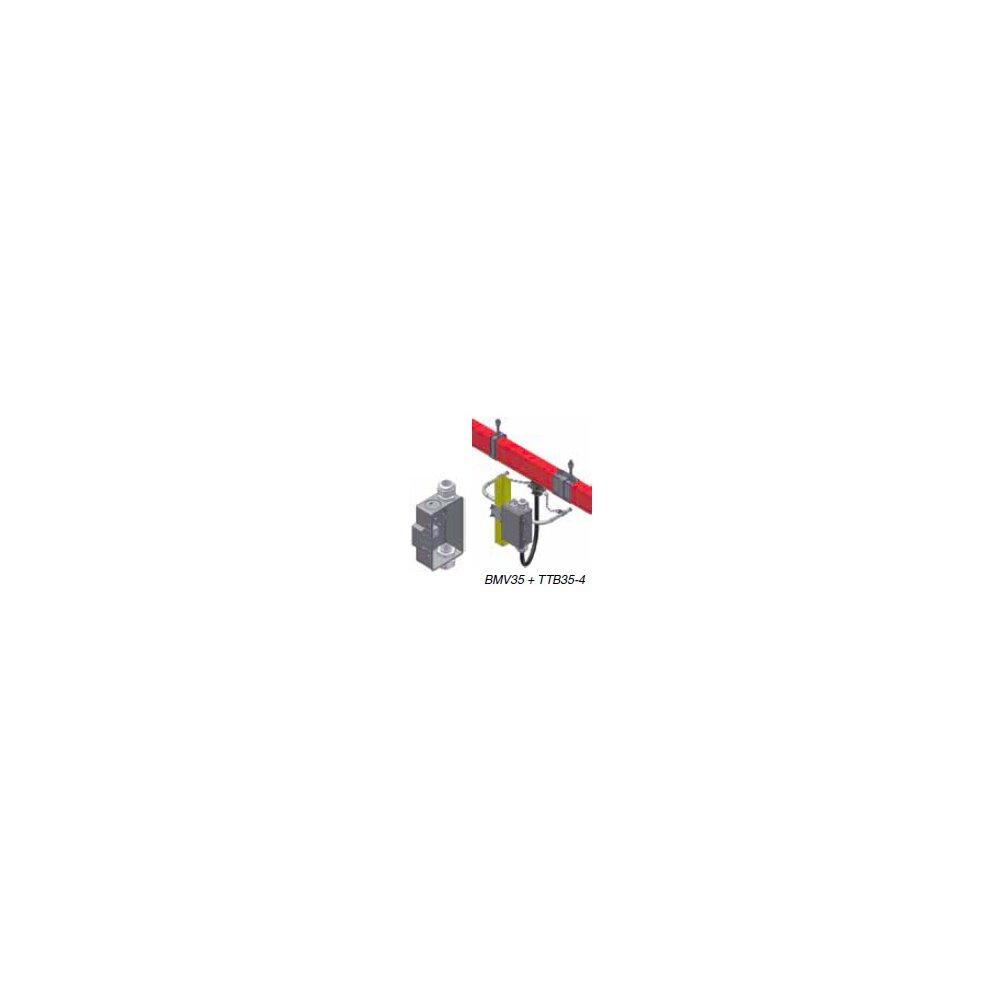

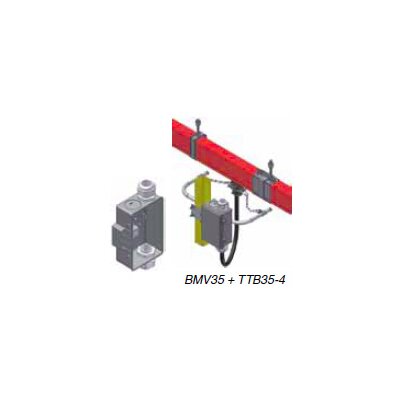

      BMV35 + TTB35

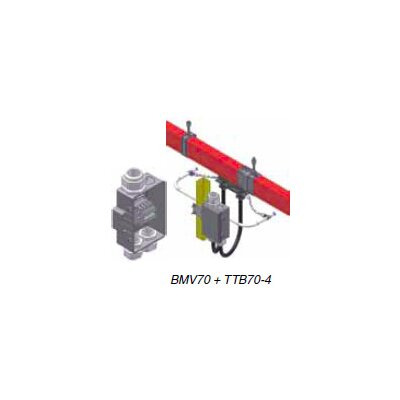

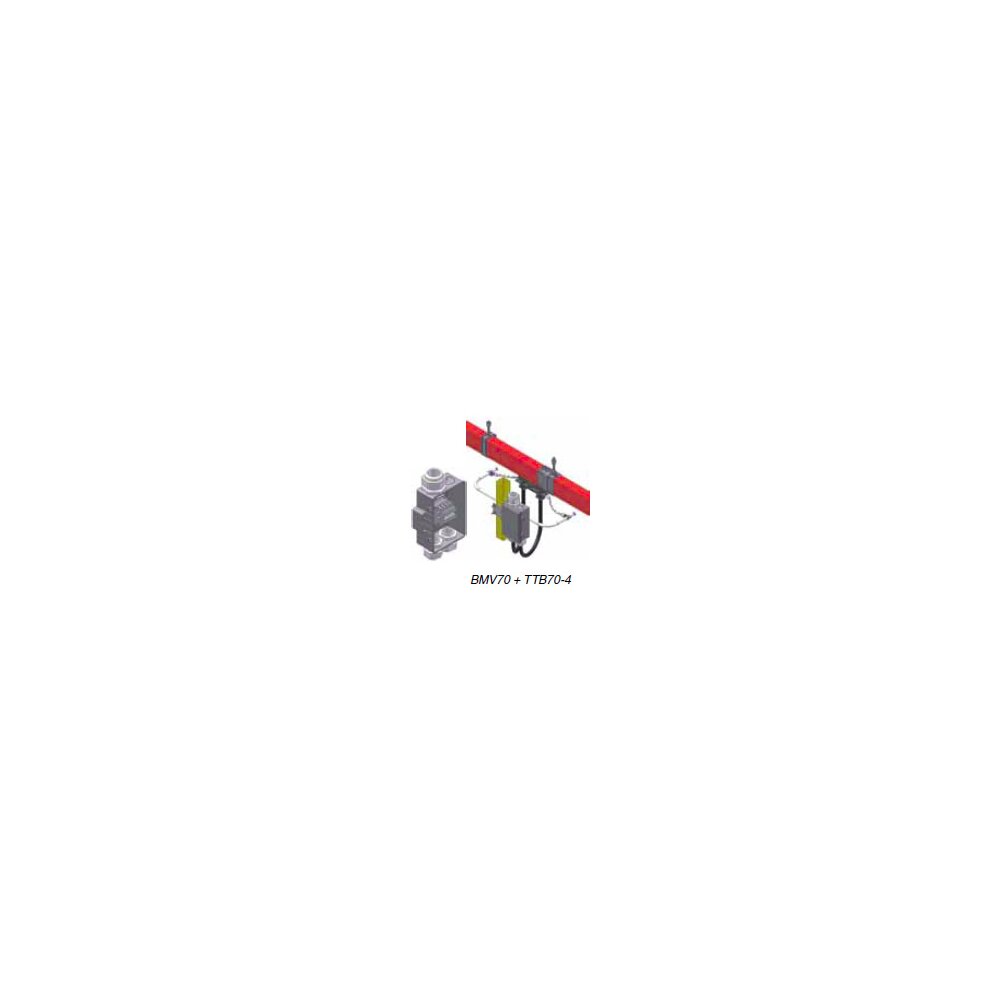

      BMV70+ TTB70

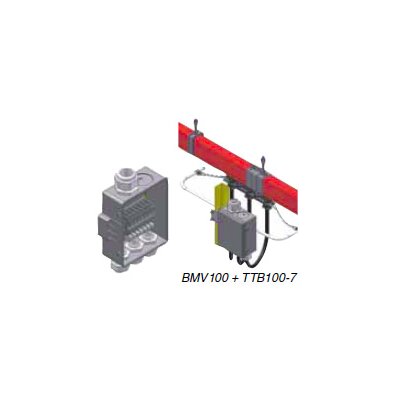

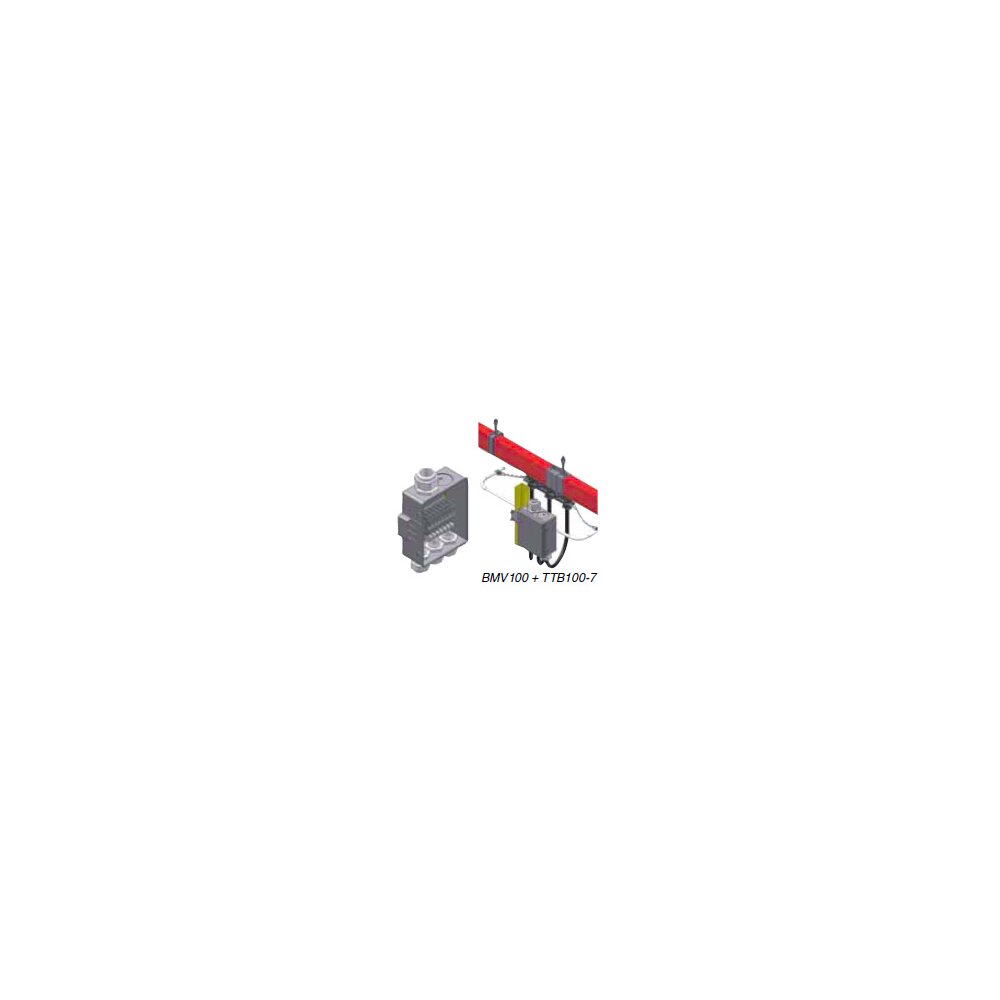

      BMV100 + TTB100
      A
      370
      505
      640
      B
      175
      175
      195
      C
      115
      115
      160
      D
      70
      70
      80
      In
      1xM32
      2xM32
      3xM32
      Out
      1xM32
      1xM40
      1xM40

      Related products

      Click Ductor conductor system - general

      Click Ductor conductor system - general

        View Product
        Housings RC4 and RC7 Click Ductor

        Housings RC4 and RC7 Click Ductor

          View Product
          Hanging and fixing of the housing click ductor

          Hanging and fixing of the housing click ductor

            View Product
            Copper connections Click Ductor

            Copper connections Click Ductor

              View Product
              End feed boxes Click Ductor

              End feed boxes Click Ductor

                View Product
                Line feed boxes Click Ductor

                Line feed boxes Click Ductor

                  View Product
                  Transition cables Click Ductor

                  Transition cables Click Ductor

                    View Product
                    Collector Trolleys Click Ductor C(L)7

                    Collector Trolleys Click Ductor C(L)7

                      View Product
                      Carbon brushes and gliding shoes Click Ductor CL7

                      Carbon brushes and gliding shoes Click Ductor CL7

                        View Product

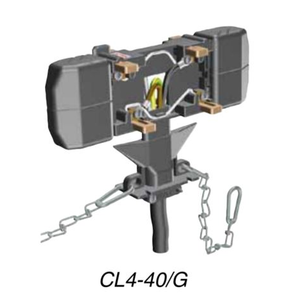

                        Akapp collector trolley CL4-40/G
