General:
In the PVC housing RC4 4 copper conductors are provided.

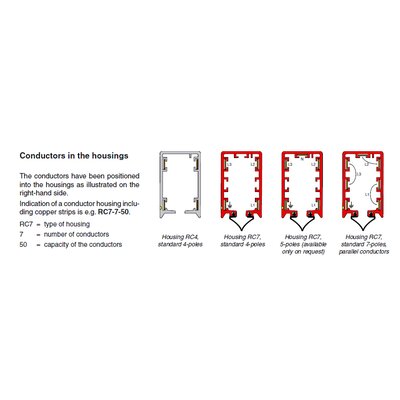

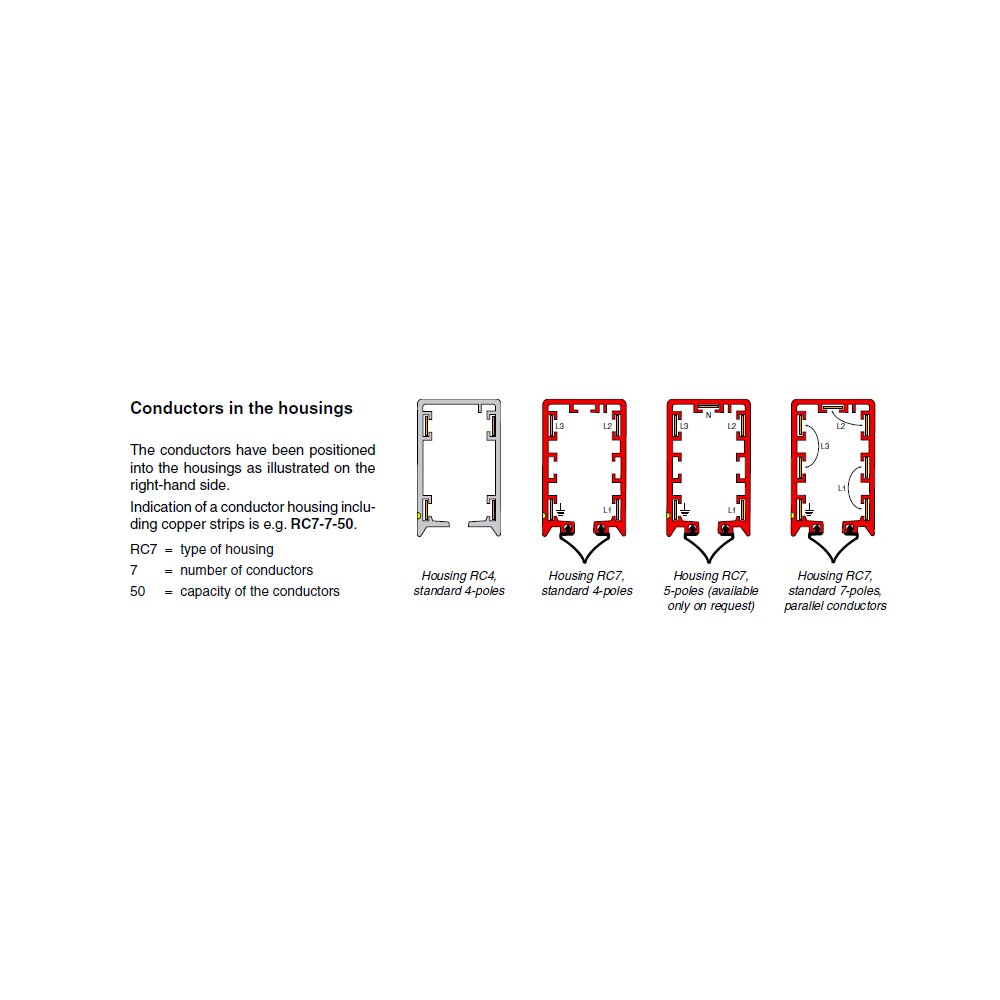

The PVC housing RC7 has 7 channels in which 4, 5 or 7 conductors, upon demand, are positioned. Installation is effected by means of simply clicking!

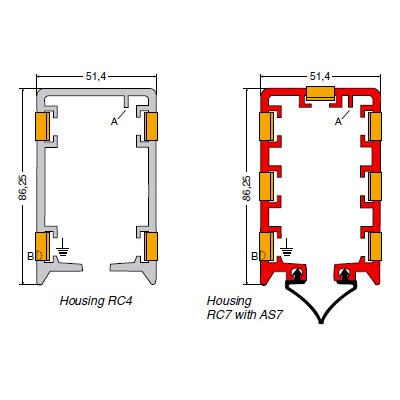

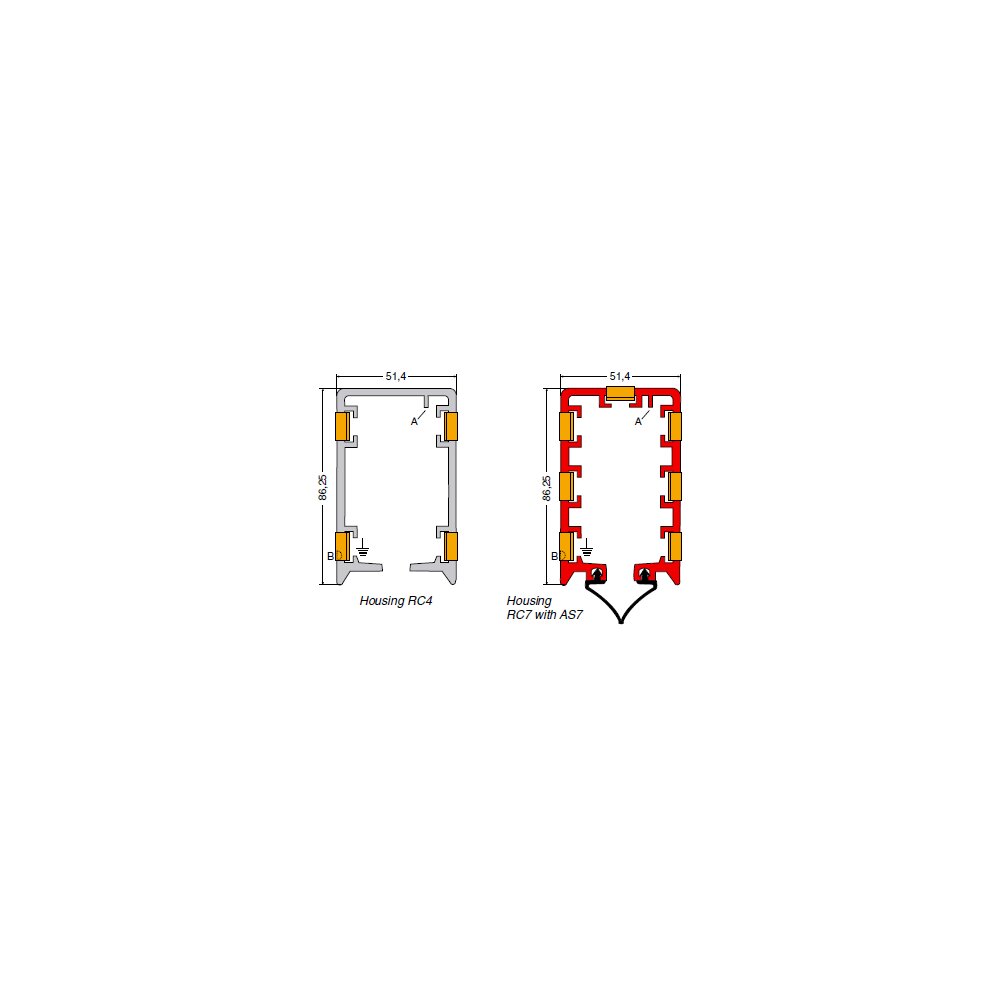

An anti-reverse rib (A) on top of the housing prevents cross phasing, incorrect placement of a collector trolley in the conductor system. A continuous yellow marking (B) on one side of the housing simplifies correct mounting of the system.The PVC-housing is self-extinguishing.
The housing RC7 can be provided with flexible rubber strips. As such penetration of dust and moisture can be minimised as a result of which an optimum of reliability is ensured

Housings:

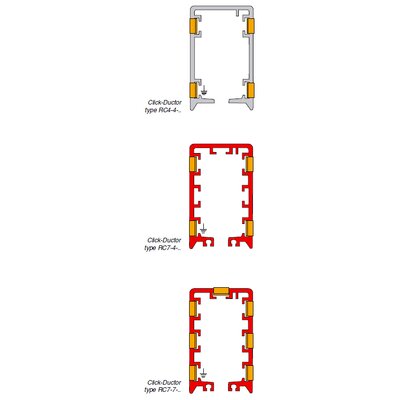

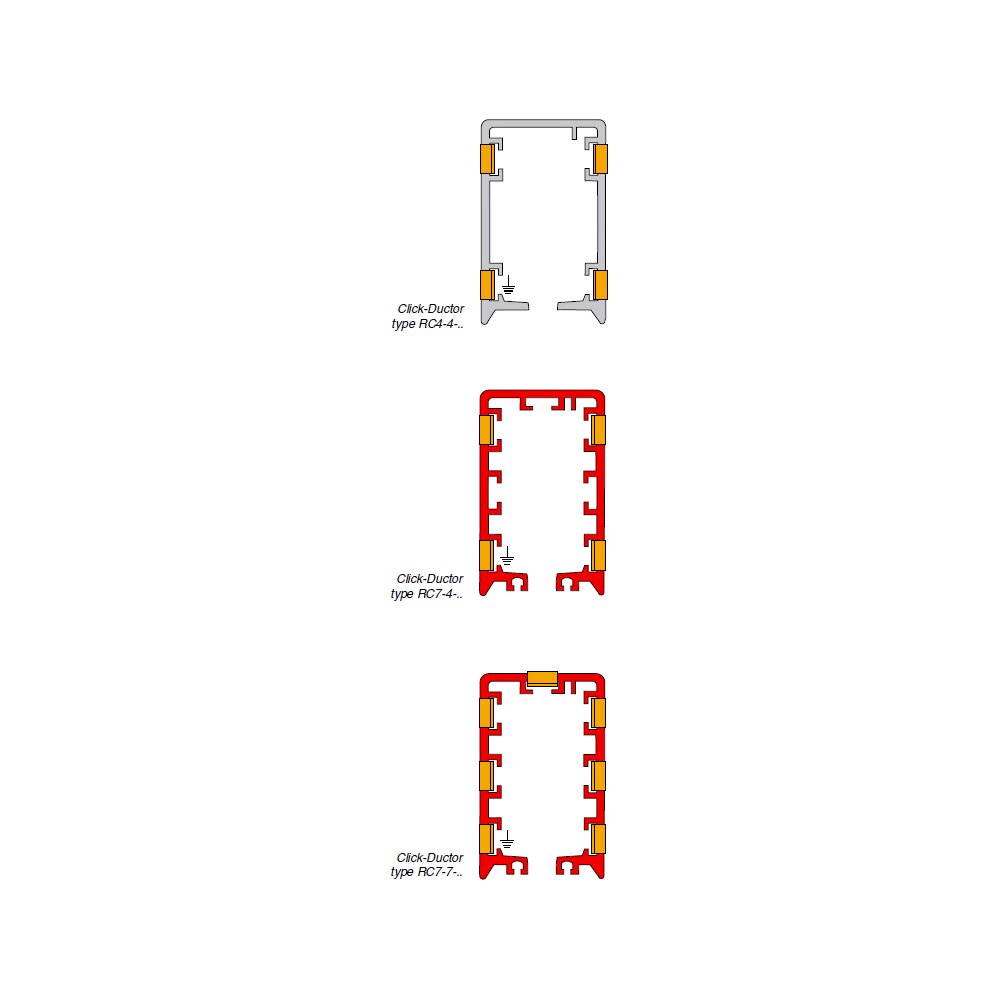

Type RC4 with 4 copper conductors.
Color housing: grey.
Temperature range: -20 °C up to +50 °C.
Suitable for indoor applications.

Type RC7-4 with 4 copper conductors.
Housing suitable for AS7 sealing
strips (see picture right).
Color housing: signal red.
Temperature range: -20 °C up to +50 °C.
Suitable for indoor and outdoor applications.

Type RC7-5 Housing equal to RC7-4, however with 5 copper conductors.
Temperature range: -20 °C up to +50 °C. Suitable for indoor
and outdoor applications.
Only available on special request.

Type RC7-7 Housing equal to RC7-4, however with 7 copper conductors.
Temperature range: -20 °C up to +50 °C. Suitable for indoor and outdoor applications.

All Click-Ductor rail types are available in lengths of 3 metres and 4 metres.

Flexible sealing strips Type AS& (art.no. 1004030):
Type: AS7 C chloroprene,
Color: black
This is used to ensure the suitability of a Click-Ductor RC7 installation for application in a dusty or humid atmosphere.
It is also a very effictive protection against corrosion of the copper conductors! This sealing is recommended for all outdoor installations.
Rail type RC7 with AS7 meets protection degree IP44 and is permitted to be mounted on every desired height.

Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

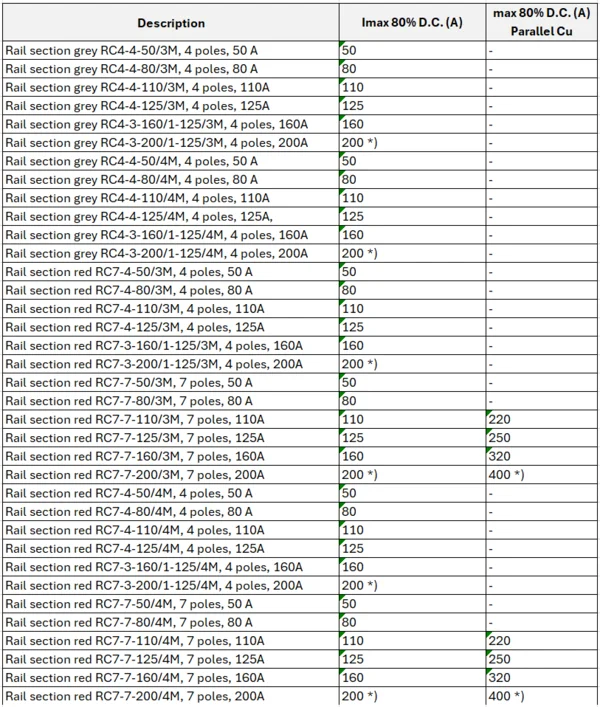

Description Akapp no. Imax 80% D.C. (A) Max track length (m) **) max 80% D.C. (A) Parallel Cu CAD
Rail section grey RC4-4-50/3M, 4 poles, 50 A 2101065.B0000 50 200
Rail section grey RC4-4-80/3M, 4 poles, 80 A 2101265.B0000 80 360
Rail section grey RC4-4-110/3M, 4 poles, 110A 2 110 490 110 500
Rail section grey RC4-4-125/3M, 4 poles, 125A 2 110 500 125 800
Rail section grey RC4-3-160/1-125/3M, 4 poles, 160A 2 110 510 160 800
Rail section grey RC4-3-200/1-125/3M, 4 poles, 200A 2 110 520 200 *) 800
Rail section grey RC4-4-50/4M, 4 poles, 50 A 2101075.B0000 50 200
Rail section grey RC4-4-80/4M, 4 poles, 80 A 2101275.B0000 80 360
Rail section grey RC4-4-110/4M, 4 poles, 110A 2 110 370 110 500
Rail section grey RC4-4-125/4M, 4 poles, 125A, 2 110 380 125 800
Rail section grey RC4-3-160/1-125/4M, 4 poles, 160A 2 110 390 160 800
Rail section grey RC4-3-200/1-125/4M, 4 poles, 200A 2 110 400 200 *) 800
Rail section red RC7-4-50/3M, 4 poles, 50 A 2103065.B0000 50 200
Rail section red RC7-4-80/3M, 4 poles, 80 A 2103365.B0000 80 360
Rail section red RC7-4-110/3M, 4 poles, 110A 2 110 530 110 500
Rail section red RC7-4-125/3M, 4 poles, 125A 2 110 540 125 800
Rail section red RC7-3-160/1-125/3M, 4 poles, 160A 2 110 550 160 800
Rail section red RC7-3-200/1-125/3M, 4 poles, 200A 2 110 560 200 *) 800
Rail section red RC7-7-50/3M, 7 poles, 50 A 2103155.B0000 50 200
Rail section red RC7-7-80/3M, 7 poles, 80 A 2103455.B0000 80 360
Rail section red RC7-7-110/3M, 7 poles, 110A 2 110 570 110 500 220
Rail section red RC7-7-125/3M, 7 poles, 125A 2 110 580 125 800 250
Rail section red RC7-7-160/3M, 7 poles, 160A 2 110 590 160 800 320
Rail section red RC7-7-200/3M, 7 poles, 200A 2 110 600 200 *) 800 400 *)
Rail section red RC7-4-50/4M, 4 poles, 50 A 2103075.B0000 50 200
Rail section red RC7-4-80/4M, 4 poles, 80 A 2103375.B0000 80 360
Rail section red RC7-4-110/4M, 4 poles, 110A 2 110 410 110 500
Rail section red RC7-4-125/4M, 4 poles, 125A 2 110 420 125 800
Rail section red RC7-3-160/1-125/4M, 4 poles, 160A 2 110 430 160 800
Rail section red RC7-3-200/1-125/4M, 4 poles, 200A 2 110 440 200 *) 800
Rail section red RC7-7-50/4M, 7 poles, 50 A 2103165.B0000 50 200
Rail section red RC7-7-80/4M, 7 poles, 80 A 2103465.B0000 80 360
Rail section red RC7-7-110/4M, 7 poles, 110A 2 110 450 110 500 220
Rail section red RC7-7-125/4M, 7 poles, 125A 2 110 460 125 800 250
Rail section red RC7-7-160/4M, 7 poles, 160A 2 110 470 160 800 320
Rail section red RC7-7-200/4M, 7 poles, 200A 2 110 480 200 *) 800 400 *)

*) 60% D.C.
**) Lengths valid for systems with centre feed (fixed point in the middle); for systems with end feed these lengths should be divided by 2
