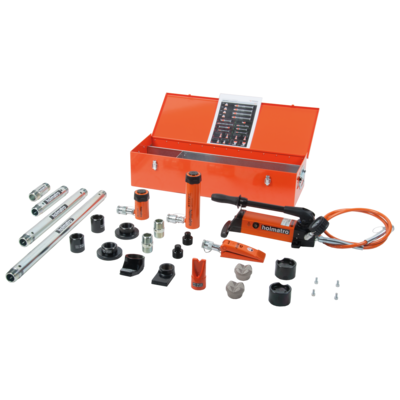

Algemeen: Multifunctionele cilinderset, bestemd voor intensief gebruik

Bestaat uit:

  • 2x Multifunctionele cilinder
  • 1x Hydraulische wig
  • 4x Verlengpijp
  • 1x Verbindingssok
  • 1x Verbindingsnippel
  • 1x Ronde voetplaat
  • 1x Kruiskop
  • 1x Spreidkop
  • 1x Cilinderteen
  • 1x Plunjerteen
  • 1x Plunjer adapter
  • 1x Cilinderhuis adapter
  • 1x Pomp met manometerset
  • 1x 2 meter slang met mannelijke koppeling

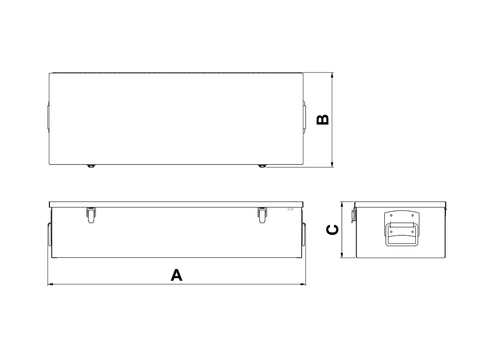

  • 1x Opbergkist

Op aanvraag leverbaar: Op klantspecificatie gemaakte cilinders

NB: Neem contact met ons op voor informatie over het bestellen van onderdelen



  • Waarschuwing: Raadpleeg de gebruikshandleiding, voordat cilinder accessoires gemonteerd worden op deze cilinder. De maximum werkdruk en totale constructielengte is beperkt bij het gebruik van cilinder accessoires!
Selecteer een rij in onderstaande tabel, en klik daarna op "voeg toe aan jouw aanvraag"
Multi Purpose Cylinder Set - PARTS description Multi Purpose Cylinder Set - PARTS art.code CAD
Fitted with unique features that considerably lengthen its life span and service life. Offers appropriate solutions for the most varied applications. 100.112.219
Fitted with unique features that considerably lengthen its life span and service life. Offers appropriate solutions for the most varied applications. 100.112.221
- To lift a load from a flat surface where there is a minimum insertion space available.- Highly suitable to carry out maintenance in places that are difficult to access.- Applications: lifting machines, dismantling and assembly, adjustment and alignment. 100.562.009
- Suitable for HGC 10 and HCJ 10 cylinders.- Length: 125 mm.- Thread size: 1¼” NPT male (2x).- Max. working pressure: 360 bar. 100.002.984
- Suitable for HGC 10 and HCJ 10 cylinders.- Length: 250 mm.- Thread size: 1¼” NPT male (2x).-Max. working pressure: 360 bar. 100.002.985
- Suitable for HGC 10 and HCJ 10 cylinders.- Length: 500 mm.- Thread size: 1¼” NPT male (2x).-Max. working pressure: 360 bar. 100.002.987
- Suitable for HGC 10 and HCJ 10 cylinders.- Length: 750 mm.- Thread size: 1¼” NPT male (2x).-Max. working pressure: 360 bar. 100.002.989
- To connect 2 extension tubes.- Suitable for HGC 10 and HCJ 10 cylinders.- Thread size: 1¼” NPT female (2x).- Max. working pressure: 360 bar.. 100.002.980
- To connect accessories to cylinders.- Suitable for HGC 10 and HCJ 10 cylinders.- Thread size: 1¼” NPT male (2x).- Max. working pressure: 360 bar. 100.002.982
- To mount on bottom side of cylinder.- Suitable for HGC 10 and HCJ 10 cylinders.- Thread size: 1¼” NPT female.- Max. working pressure: 360 bar. 100.002.978
- To provide better grip.- Suitable for HGC 10 and HCJ 10 cylinders.- Thread size: 1¼” NPT female.- Max. working pressure: 360 bar. 100.002.966
• For spreading.• Suitable for HGC 10 and HCJ 10 cylinders.• Thread size: 1¼” NPT female.• Max. working pressure: 360 bar. 100.002.968
- Suitable for HGC 10 cylinders- Thread size: 2¼”-14 UNS female- Max. working pressure: 144 bar 100.002.992
- Suitable for HGC 10 and HCJ 10 cylinders- Thread size: 1¼” NPT female- Max. working pressure: 144 bar 100.002.991
- Suitable for HGC 10 cylinders- Thread size: 1¼” NPT female- Max. working pressure: 360 bar- Standard supplied with 2x bolt M8x16 100.002.969
- Suitable for HGC 10 cylinders- Thread size: 1¼” NPT male - 1”-8 UNC male- Max. working pressure: 360 bar 100.002.964
The pump is ergonomically designed, has a robust, compact construction, is service- and maintenance-friendly and combines a low operating force with a high oil output. This all combined with a range of handy features makes this pump a worthwhile asset for you and your tools.This pump is ideal when you are working with smaller hydraulic tools and you want to profit from a very high oil output in the first stage (up to 45 bar) to speed things up. 100.142.033
- length 2 m.- male coupler A 119 on one side. 100.572.102
- 0-720 bars- Pointer damped with glycerine- Stainless steel- Housing Ø 63 mm- Including rubber protection cover- Connection: ¼” NPT male 100.182.213
150.581.001
