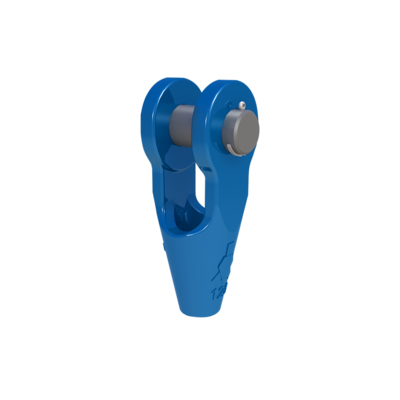

Open Spelter Sockets with pin OSS P

Quenched and tempered cast steel range steel wire rope sockets for embedment with cast compound with mechanical values (Charpy-V > 42 Joule /-20°C) for tough and low temperature use. For wire rope diameter 6 - 203 mm (1/4” - 8”).

2 surface finishes available:

  • Model OSS P: blue painted. (OSS 196 until OSS 100 only Hot dipped galvanized)
  • Model OSS P.GAL: Hot dipped galvanized.


  • Pin securing by cotter pin.
  • All spelter sockets have a 100% efficiency.
  • Also available with pin + bolt ( type OSS B )
  • Material: Quenched and tempered cast steel
  • Marking: CE-marked, Size, wire rope diameter and batch or serial number.
  • Temperature range: From - 40°C up to +110°C - 100% capacity range.
  • Finish: OSS P: blue painted - OSS PGAL : Hot dipped galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
