General:
AKAPP offers the possibility to use a singular collector trolley, type CL4-40/G, with double brushes. This trolley applies to the IEC 60204.32.13.8.2 standard, describing the situations whereas conductor bar systems need to apply double carbon brushes.
The CL4-40/G trolley is an excellent and very cost effective solution for those cases whereas the above standard is applied. In addition, the CL4-40 will improve the cost effectiveness of systems that are controlled by frequency inverters.
The CL4-40/G is a 4 pole trolley, capacity 40 Amps at 60% duty cycle. Applicable from -20°C up to +80°C (attention: the max. temperature of the Click-Ductor housing is +50°C). The CL4-40/G uses twin carbon brushes C91D for phases and special twin ground brushes C91DA. All CL4-40/G trolleys are available with cable lengths of 1m (standard), 2m, 3m, 4m or 5m. For cable lengths other than 1m, add /2M, /3M, /4M or /5M
to the type description.

Standard collector trolleys:

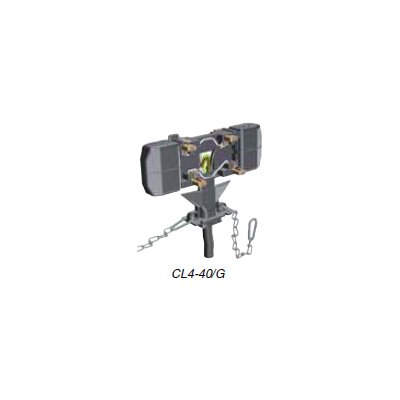

Type CL4-40/G
4-pole trolley with standard wheels. Max. speed 80 m/min. For all RC-types of housings. Standard fitted with 1m cable. Note: Trolleys without cable are also possible. Please cancel the “L” in the type description; e.g. type ‘C4-40’ is a 40 Amps trolley without cable. The table shows an overview of available collector trolley types with the respective article numbers.

Collector trolley assemblies:

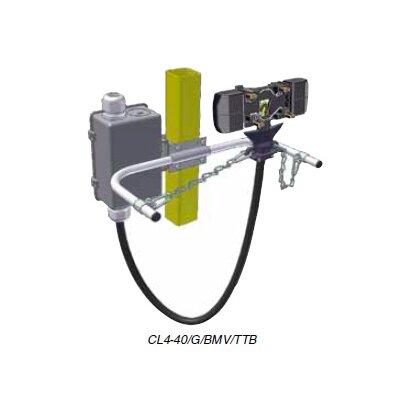

Type CL4-40/G/BMV/TTB (art. no. 1088650)
For easy ordering, we created a fully assembled version of the collector trolley CL4-40/G, complete with towing arm BMV35 and trolley transition box TTB35.

      Product Image 2
      Collector trolley assembly Type CL4-40/G/BMV/TTB (art. no. 1088650)
      Currently this product cannot be added to an online quote. Please contact us directly for enquires.
      Carbon brushes and gliding shoes CL4.
      AKAPP NO.
      DESCRIPTION
      TYPE
      1410601
      Carbon brush twin phase
      C91D *)
      1410631
      Carbon brush twin ground
      C91DA
      1331930
      Gliding shoes
      ---
      Available collector trolleys CL4.
      AKAPP NO.
      DESCRIPTION
      EXTEN- SION
      max In (ID=100%) (A)
      number of poles
      max. speed m/min.
      1088610
      Collector trolley + cable CL4-40/G
      31,00
      4
      80
      1088610.B0002
      Collector trolley + cable CL4-40/G
      /2M
      31,00
      4
      80
      1088610.B0003
      Collector trolley + cable CL4-40/G
      /3M
      31,00
      4
      80
      1088610.B0004
      Collector trolley + cable CL4-40/G
      /4M
      31,00
      4
      80
      1088610.B0005
      Collector trolley + cable CL4-40/G
      /5M
      31,00
      4
      80
      1088650
      Collector trolley CL4-40/G/BMV/TTB
      31,00
      4
      80
