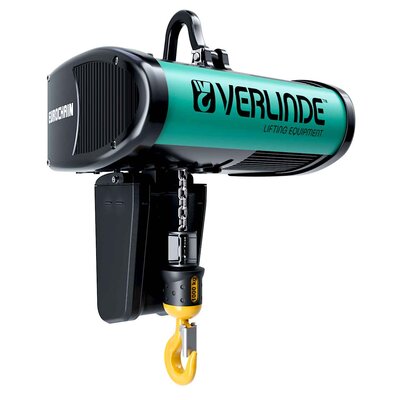

Electric chain hoist, Verlinde eurochain VX

General:
The new generation VERLINDE electric chain hoist VX for loads from 63 to 10,000 kg.

Standard equiped with:
• Height of lift 6 m. (other lifting heights possible)
• Standard Control cable 5.5 mtr.
• 2 hoisting speeds.
• Safety limit switch for upper & lower position.
• IP55 hoisting & travelling motor protection.
• Load chain galvanized.
• 2 buttons pendant for hook suspended hoist
or manual trolley.
• 4 buttons pendant for hoist with electric trolley.
• Power supply 400V/3Ph/50Hz or 415V/3Ph
50 Hz or 460V/3Ph /60 Hz.
• Low voltage control 48 V.
• Torque limitor.
• Chain collector.
• Emergency stop button mushroom type.
• Variable travelling speed (for hoist with electric trolley)
• Complies with the CE machine directive.

Optional:
• Non standard power supply (ex. : 230 3ph).
• ACF board for direct control hoist.
• Hard wired control (48V).
• Stainless steel lifting chain and hook.
• Self locking hook.
• Time meter.
• Radio remote control.
• Pendant with 4 or 6 buttons.
• Key switch on pendant.
• Travel limit switches.
• Non standard length on power supply cable.
• Non standard power supply plug (4 or 5 poles).
• Rain cover.
• Brake manual release.
• Food contact oil (NSF H1).
• Gear limit switches 2 or 4 steps.

Available versions (on request):
• Fixed hoist suspended by hook.
• Hoist on monorail push trolley.
• Hoist on monorail motorized trolley.

  • Marking: CE-marked
