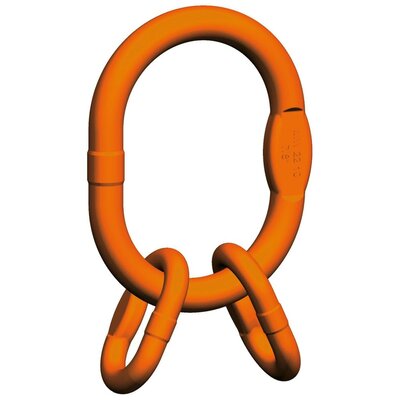

Master Link Assembly Pewag VMW Enlarged

pewag

VMW Enlarged master link assemblies are designed for pewag connex and welded system. For assembling 3- and 4-leg chains with connex links CW. For assembling of welded chain slings with BW by pewag. Similar to VW 4-leg set, but also suitable for larger crane hooks and special hooks.

  • Material: High duty grade 10.
  • Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 1677-4
  • Safety factor: 4:1
  • Grade: 10
