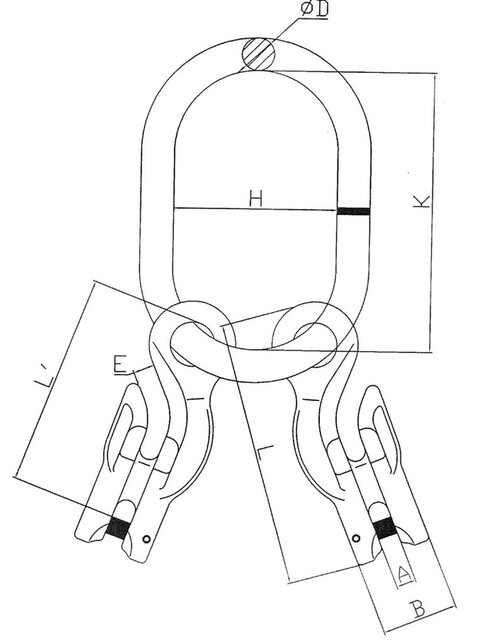

The POWERTEX Master Link assembly MC2 is part of the range of Powertex G10 Lifting Sling Chain Components. The MC2 assembly is made up of a master link and two integrated connectors with a shortening hook. This convenient combination allows operators to easily adjust the assembly length according to the specific application requirements. Due to its integrated components, this part is more cost-efficient, user-friendly, and lightweight than traditional assemblies. The MC-2 is to be used for two-legged chain sling assemblies.
Available for 6 mm up to 16 mm chain and from WLL 2t up to WLL 14t.
All models have a welded master link and forged connectors.
Also available as MC1 for one-leg assemblies and MC4 for four-legged assemblies.
Powertex G10 Range benefits:
- 25% higher capacity compared to traditional Grade 8 components
- All POWERTEX G10 components are powder painted in luminous red
- Multi-functional master links and components are included in the range to allow quick and cost-effective assembly of chain slings
- The components meet EN 1677 part 1/2/3/4 +25% WLL
- Each forged component is crack detection tested, and samples are proof load tested.
- Each component is type tested in the factory and fatigue rated to 20,000 cycles at 1.5 times the WLL
- Full traceability through a batch number
- Replacement spare parts available
- All components are chromium 6 free
- POWERTEX 2.2 certificate enclosed with each box of components
- The components may also be used with Grade 8 chain to EN 818-2. In such a case, the chain sling needs to be rated as Grade 8 in accordance with EN 818-4.
- Marking: According to standard, POWERTEX + Model (MC2-6-10) + traceability code.
- Temperature range: -40°C up to +200°C without reduction in WLL
- Finish: Powder painted in luminous red
- Standard: AS 3776
-
Standard:
EN 1677-4
(+25% WLL) - Note: All models are welded
- Safety factor: 4:1
- Grade: 10
