Load Distributor AGWW Grade 10

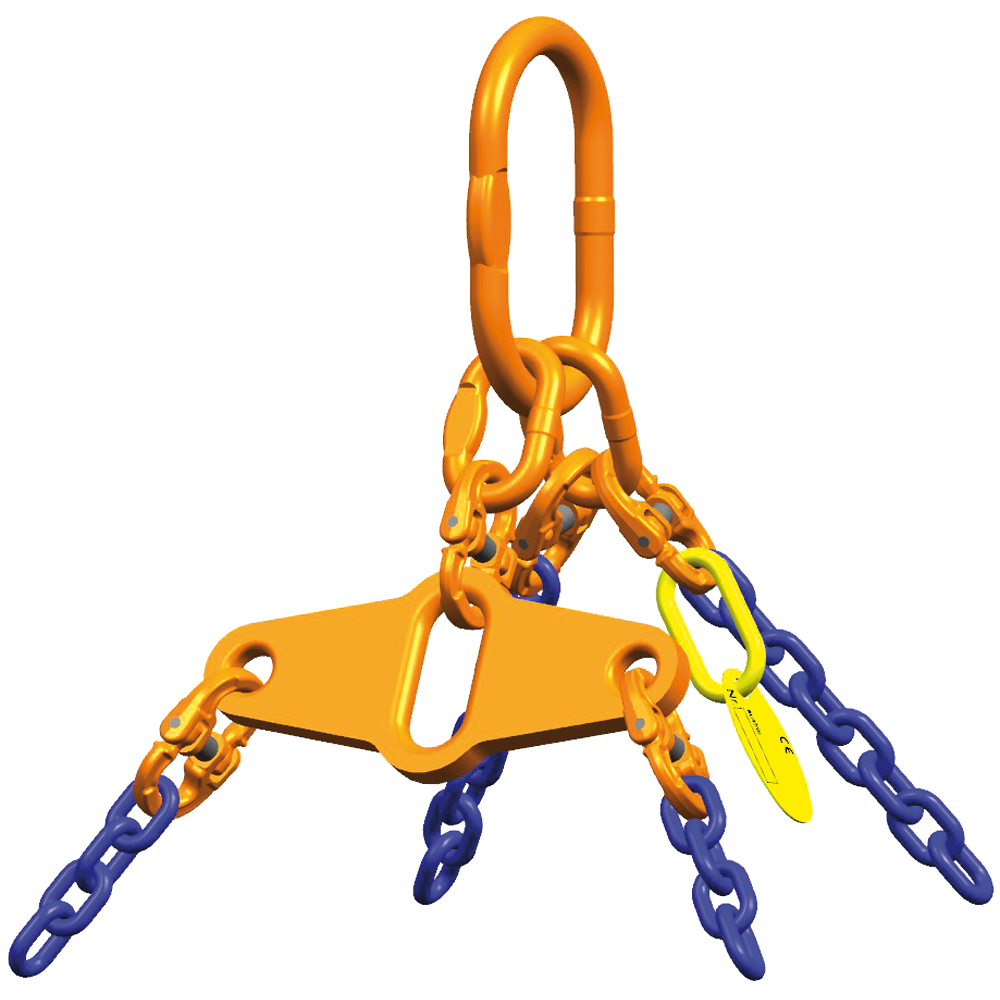

For assembling 4-leg slings with connex connecting links, possibly all four legs can be considered as carrying. If two 2-leg slings are used at the same time and one of them is provided with a load distributor, this system can possibly also be considered as a 4-leg sling where all four legs carry the load. Because of higher WLL compared to standard 4-leg slings, keep attention to the WLL of the master link assembly. Should operational wear occur, the load distributor can be turned 180° – this increases the life cycle of the distributor and reduces the costs immensely!

  • Material: High duty grade 10.
  • Marking: According to standard, Pewag or PW, winner or 10, H16, CE, batch code and type.
  • Temperature range: -40ºC up to +380°C.
  • Finish: Orange powder coated.
  • Standard: EN 818-4
  • Safety factor: 4:1.
  • Grade: 10
