General:

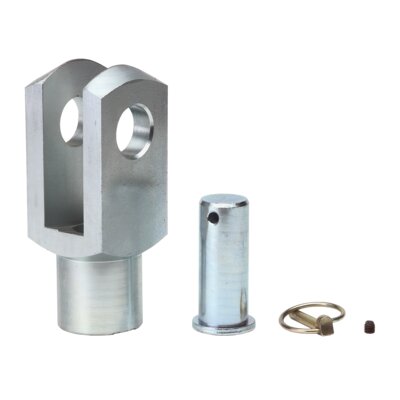

- Clevis eye for pulling cylinders, 11 ton
- Complete with safety Pin
- Suitable for use with webbing slings

Additional information:
- To be ordered separately, 2 pieces per cylinder

      Product Image 1

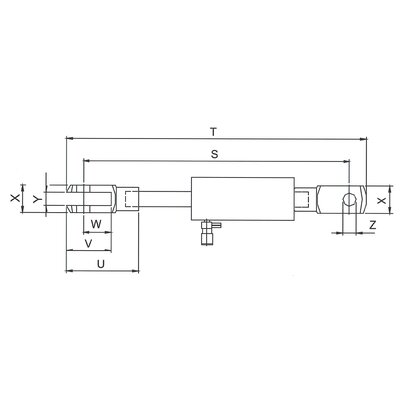

      Technical Drawing Of Pulling Cylinder With Clevis Eyes_1280x928px_E_NR-1996
      Select a row from the table below, then click the add to quote button
      Part Code Model S max.
      mm
      T
      mm max.
      U
      mm
      V
      mm
      W
      mm
      X
      mm
      Y
      mm
      Z
      mm
      16.40HOL100181056 HPJ 11 S 15 650 730 160 100 60 60 30 30
      16.40HOL100181057 HPJ 30 S 15 828 916 188 116 72 70 36 35
