General:
- No test certificate possible.
- Groove in sheave may be adjusted to other wire rope diameters.

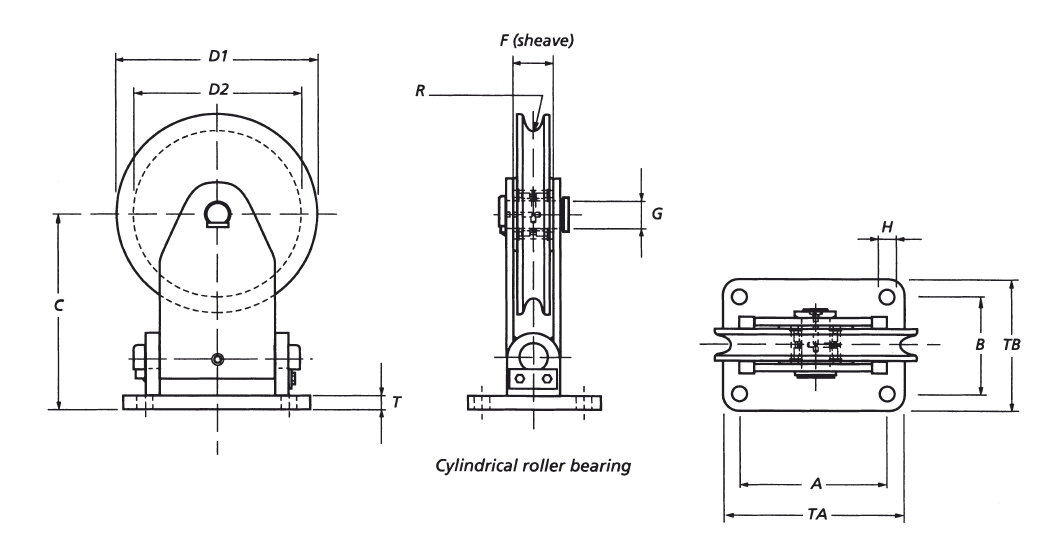

Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button
WLL
ton
Stock No. Wire size up to
mm
Bearing D1
mm
D2
mm
A
mm
B
mm
C
mm
F
mm
G
mm
H
mm
T
mm
R
mm
TA
mm
TB
mm
Weight
kg
CAD
1 16,193 10 Bronze 125 105 90 70 128 27 22 9 8 5,5 115 95 3,5
2 16,193 12 Bronze 150 120 115 85 160 40 30 11 10 6,5 140 110 6,5
3 16,193 14 Bronze 200 165 150 95 197 40 30 13,5 12 7,5 180 125 11
4 16,193 18 Bronze 250 210 190 120 240 45 35 17,5 15 9,5 230 160 21
6 16,193 20 Bronze 300 255 220 150 295 50 40 22 20 11 270 200 33
8 16,193 22 Bronze 350 305 270 160 350 50 45 26 25 12 330 220 52
10 16,193 24 Bronze 400 345 300 190 400 60 50 32 30 13 370 260 80

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
