General:
The MR Multi-rail grabs have been designed to facilitate the fastbulk handling of a specific rail section (details to be advised at time of order). Rails are locked onto the clamp by swivelling feet that locate under the rail-head and top clamp body that rotates in a cam actionpressing a hard rubber lined horizontal beam onto the top of the rail-head. The rubber lined contact beam prevents marking or damage to the rail-head.Two clamps are recommended at centres of 50% to 60% of raillength for rails up to 20 mtr long. For rails longer than 20mtr, three clamps at centre distance between outer clamps of 65% to 75%of rail length must be used. (NB. Clamp must be within rated WLL). Rails to be lifted must be stacked with bottom flange toes touching. All rails must be of the same rail section size.

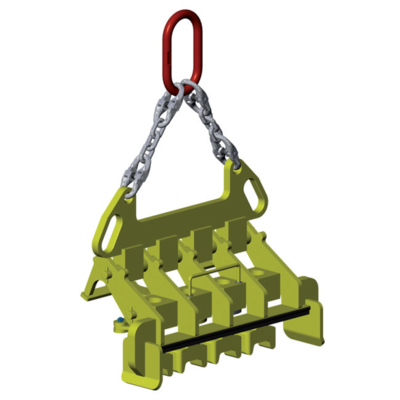

      Product Picture 1
      Select a row from the table below, then click the add to quote button
      WLL Type Number of rails Weight
      kg
      5 000 MR3 3 84
      5 000 MR4 4 108
      5 000 MR5 5 132
      6 000 MR6 6 156
      7 000 MR7 7 180
      8 000 MR8 8 204
      10 000 MR10 10 252
      12 000 MR12 12 300
