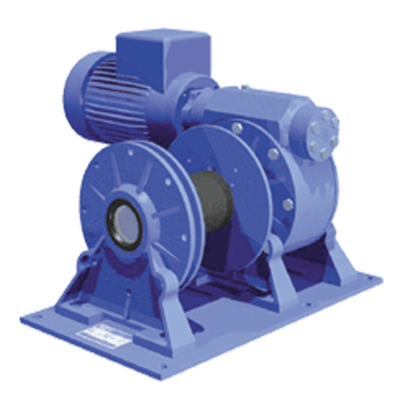

Electric Winch Type MCW EMCE

A range of electric self braking worm gear winches, developed for heavy duty pulling and traversing duties up to 2800 kg. Also available as a lifting winch. Due to self braking worm gears the winches are suitable for pulling up an incline.

The MCW series is also available as a lifting winch with

Show more

Part code:

A range of electric self braking worm gear winches, developed for heavy duty pulling and traversing duties up to 2800 kg. Also available as a lifting winch. Due to self braking worm gears the winches are suitable for pulling up an incline.

The MCW series is also available as a lifting winch with capacities up to 1700 kg. For more accurate positioning during pulling, or repetitive lifting jobs, an optional motor brake is available.

Standard features:

  • Self-braking wormgear transmission 1)
  • IP 54 400 V-AC / 3 phases / 50 Hz non-braked motor
  • Steel drum (not grooved) with cable fixing point at flange
  • Single drum support (MCW 250, MCW 500)
  • Two drum supports (all other models)
  • Double layer 2-component conservation according ISO 12944 category C2-Low, colour RAL 5010
  • FEM / ISO class: T2-L2-M2

Mechanical options:

  • Braked motor (aluminium or cast iron)
  • IP 56 TENV cast iron motor for marine applications
  • 220 single-phase motors (up to MCW 750)
  • 24 V DC motors
  • Explosion-proof motors
  • Protective steel motor cover
  • Manual or remotely controlled disengaging clutch
  • Band brakes
  • Grooved drum
  • Drum pressure roller
  • Alternative speeds
  • Alternative drum dimensions / split drums / additional rope anchors / etc.
  • Drum guards
  • Emergency cranking
  • Marine / offshore coating systems

Control options:

  • IP 65 direct pendant remote control with emergency stop (up to 1.5 kW 220 V AC / 1 phase or 2.2 kW 400 V AC / 3 phase)
  • IP 55 Control box with push-buttons and emergency stop built acc. to NEN60204-32
  • IP 66 Control box with low-voltage IP 65 remote control built acc. to NEN60204-32
  • Load limiter
  • Frequency inverter for variable speed control
  • Wireless radio remote control systems
  • Limit switches
  • Slack wire switches

  • Features: - Self braking worm gear transmission.
  • Note: Please indicate in the comments field of your request if you want to use the winch for lifting purposes.
