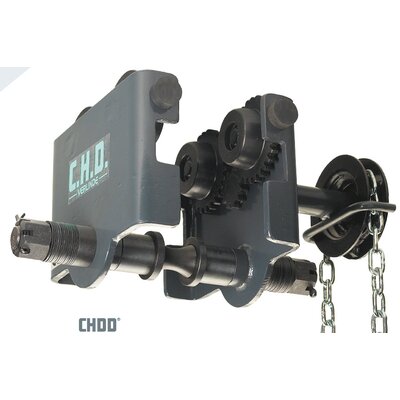

CHDD trolley

CHDD manual mechanical travel trolley for loads from 1000 up to 20.000 kg.

Technical characteristics:
- Can be used with any type of overhead hooked lifting device.
- Operated by using a handwheel and chain.
- Galvanized hand chain.
- Delivered in individual boxes, ready to assemble.

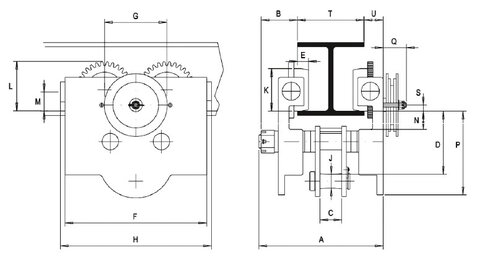

- Easily adjustable to fit up to 300mm beams (over 300mm on request).
- Trolley side plate made of heavy-duty steel.
- Side plates finished with RAL7021 powder coating, 70 μ thick.
- Rollers machined for smooth movement.
- Rollers compatible with all sorts of I and H beams.
- Watertight, maintenance–free ball bearings.
- Fall-prevention brackets and rubber stops.
- Serial number inscribed on chassis.

- Stainless steel hand chain.
- Ex Version with ATEX markings.
- Higher load capacities on request.

  • Material: Side plates and Traverse Steel E24, Rollers Steel Ft25
  • Finish: Side plates: High duty powder paint RAL 7021.
