Shank Hook Crosby S-319 / S-319N

Home / Products / Lifting Equipment / Chain & components / Hooks / Shank Hook Crosby S-319 / S-319N

The most complete line of shank hoist hooks. Available 3/4 to 300 metric tons.
Proper design, careful forging, and precision controlled quench and tempering give maximum strength without excessive weight and bulk.

Material: Quenched and Tempered. Available in carbon steel, alloy steel, and bronze.
Marking: Code and grade.
Finish: Painted.

Safety factor: 4:1.
Grade: 8

Select a row from the table below, then click the add to quote button

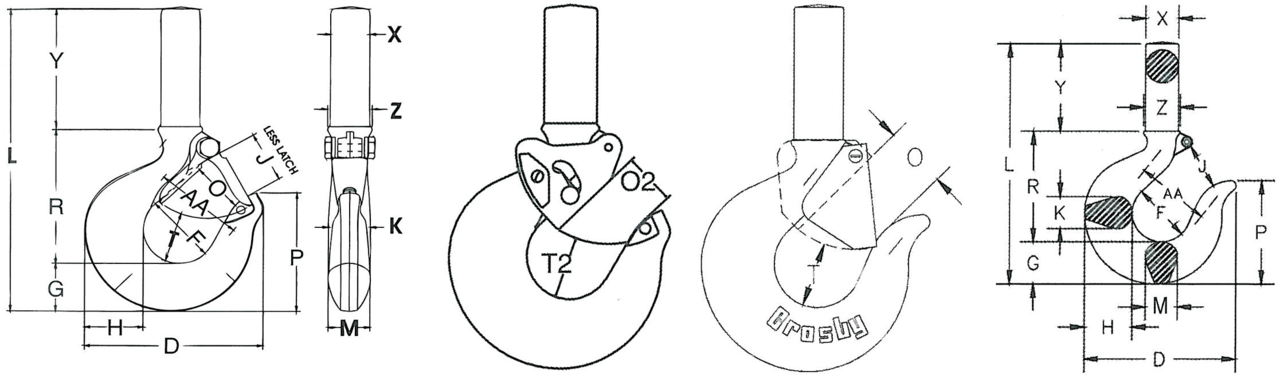

Part Code	WLL ton	X mm	Hook ID Code	O2†† mm	T2†† mm	Y mm	Z mm	D mm	F mm	G mm	H mm	J mm	K mm	L mm	M mm	O mm	P mm	R mm	T mm	AA mm
11.141028701	1,25	15,0	D	-	-	52,5	17,5	72,5	31,8	18,5	20,6	23,6	16,0	131	16,0	†23,6	49,8	59,5	24,6	38,1
11.141028710	1,6	16,8	F	-	-	57,0	19,8	80,5	35,1	21,3	23,9	24,6	18,0	144	18,0	†24,6	56,5	66,0	24,6	50,8
11.141028723	2,5	18,3	G	-	-	66,0	22,4	91,0	38,1	25,4	29,5	26,9	22,4	161	22,4	†26,9	62,0	70,0	26,2	50,8
11.141028732	3,2	22,4	H	-	-	72,0	25,4	102	41,1	29,0	33,3	30,2	23,9	181	23,9	†29,5	70,5	80,5	29,5	50,8
11.141028741	5,4	29,5	I	25,4	38,1	87,5	31,8	123	51,0	36,6	41,4	38,1	33,3	219	28,7	†34,5	88,0	98,0	38,9	63,5
11.141028750	8	35,8	J	33,3	47,8	97,5	39,6	160	63,5	46,2	52,5	45,2	42,2	265	36,6	40,9	117	121	49,3	76,2
11.141028765	11,5	46,0	K	46,0	57,2	111	49,3	192	76,0	57,5	67,0	61,0	47,8	318	41,4	53,0	133	149	62,5	101
11.141028792	16	51,0	L	51,0	58,7	178	55,5	212	82,5	66,0	74,5	66,5	55,5	409	49,3	57,5	151	162	66,0	101
11.141028801	22	65,0	N	69,9	65,0	178	67,0	263	108	76,5	89,0	86,5	68,5	461	60,5	76,5	175	207	71,5	127
11.141024803	30	79,0	O	-	-	254	79,0	346	127	92,0	117	102	76,0	586	76,0	82,5	223	240	87,5	165
11.141024821	30	79,0	O	-	-	457	79,0	346	127	92,0	117	102	76,0	790	76,0	82,5	223	240	87,5	165
11.141024867	37	102	P	-	-	610	102	357	137	116	127	108	92,0	1 044	76,0	76,0	287	318	98,5	177
11.141024849	37	102	P	-	-	381	102	357	137	116	127	108	92,0	816	76,0	76,0	287	318	98,5	177
11.141024885	45	106	S	-	-	381	106	392	152	129	140	121	94,5	867	82,5	86,0	319	356	121	203
11.141024901	45	106	S	-	-	610	106	392	152	129	140	121	94,5	1 095	82,5	86,0	319	356	121	203
11.141024929	60	114	T	-	-	368	114	470	178	152	165	146	113	916	99,5	105	375	395	145	254
11.141024965	60	114	T	-	-	660	114	470	178	152	165	146	113	1 208	99,5	105	375	395	145	254
11.141024983	75	127	U	-	-	381	127	524	197	170	184	165	133	1 045	108	124	420	492	152	292
11.141025009	75	127	U	-	-	584	127	524	197	170	184	165	133	1 249	108	124	420	492	152	292
11.141025027	100	178	W	-	-	381	178	584	173	218	251	149	140	1 070	140	114	438	468	178	305
11.141025045	100	178	W	-	-	533	178	584	173	218	251	149	140	1 222	140	114	438	468	178	305
11.141025063	150	184	X	-	-	457	184	619	171	232	278	152	152	1 162	152	114	457	467	178	330
11.141025081	200	203	Y	-	-	508	203	678	191	248	300	168	178	1 283	178	127	502	521	203	330
03-2072524	300	241	Z	-	-	508	241	765	241	270	329	203	184	1 389	203	159	576	597	210	381

† 3/4tC - 22tA dimensions shown are for S-4320 Latch Kits. Dimensions for sizes 20t carbon and larger are for PL Latch Kits.
†† Dimensions are for PL-N Latch Kits.
For the purpose of calculating D/d ratio, utilize dimension M.
