Eye Nut EL, Green Pin®

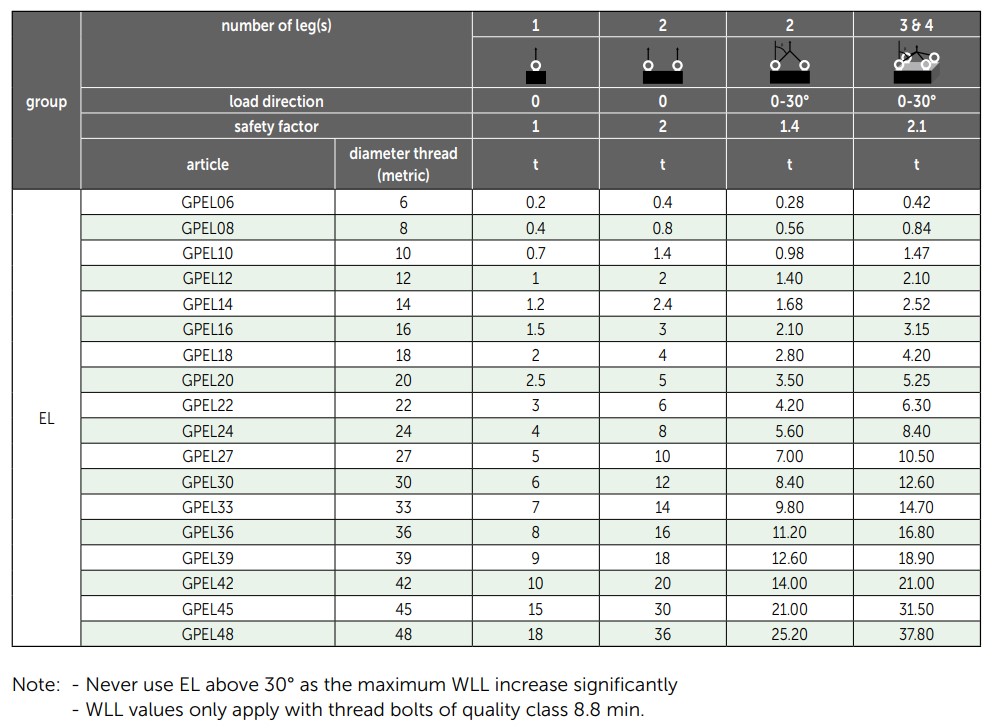

The Green Pin® Eye Nut is a grade 8 eye nut. These eye nuts have a flat on the eye, which enables the assembly with an omega link or a thimble. They have ISO metric threads as standard, however UNC threads are also available. The Green Pin® Eye Nut is available in a range with a working load limit from 0.2 t. up to 18 t.

Certification: at no extra charge this product can be supplied with a works certificate,
a 3.1 material certificate and/or EC Declaration of Conformity

  • Material: alloy steel, quenched and tempered
  • Marking: CE-marked
  • Temperature range: -40°C up to +200°C
  • Finish: Painted red or white
  • Safety factor: 5:1
  • Grade: 8
