Eye Bolt Stainless Steel ALDINI

  • Stainless steel

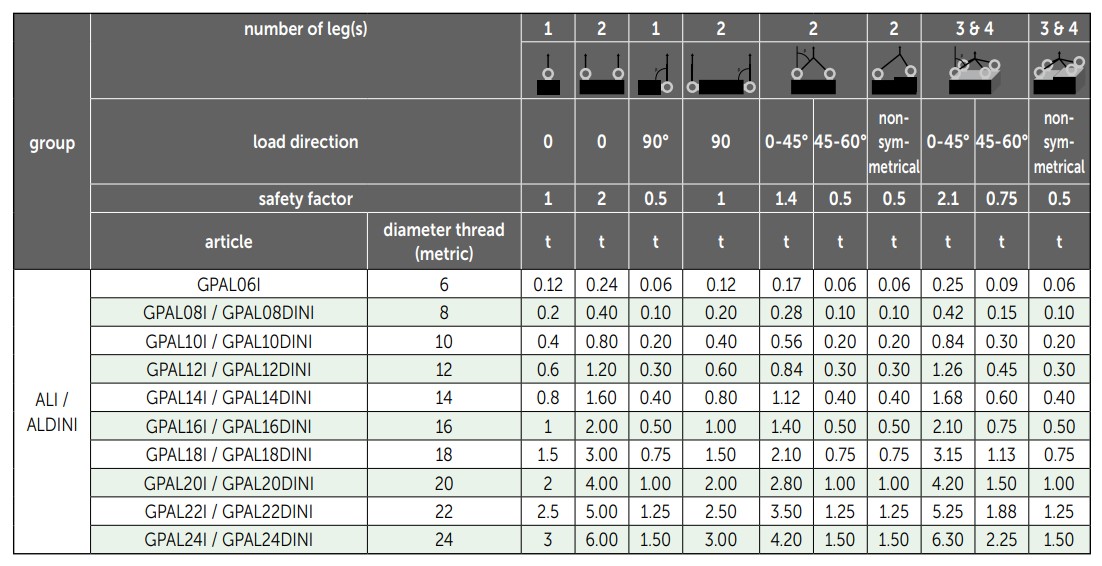

The Green Pin® Stainless Steel Lifting Eye DIN580 is a grade 5 stainless steel lifting eye with a shorter length in conformity with the DIN580 standard. The non-corrosive nature of stainless steel makes it the perfect choice for use in industries such as foods, nuclear and sailing. The WLL for lifting points are valid for in-line lifting only, but can be side loaded with reduction of the WLL. The longer thread length of the ALDINI makes a through-hole mounting with a nut and washer on the other side possible. The thread length of the lifting eye should be adapted to the material of the load. The Green Pin® Stainless Steel Lifting Eye DIN580 is available in a range with a working load limit from 0.2 t. up to 3 t.

Certification: at no extra charge this product can be supplied with a works certificate and/or EC Declaration of Conformity

  • Material: AISI 316L
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to +200°C
  • Finish: polished
  • Standard: DIN 580
  • Safety factor: 5:1
  • Grade: 5
