General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Compact
- Usable in all positions
- Protected against ejection of plunger

Standard supplied with:
- High Flow female coupler A 118

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Collar thread
- Base mounting holes

  • Material: steel

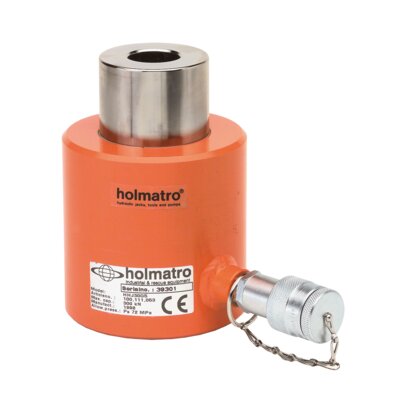

    Product Image 1
    Product Image 2
    Select a row from the table below, then click the add to quote button

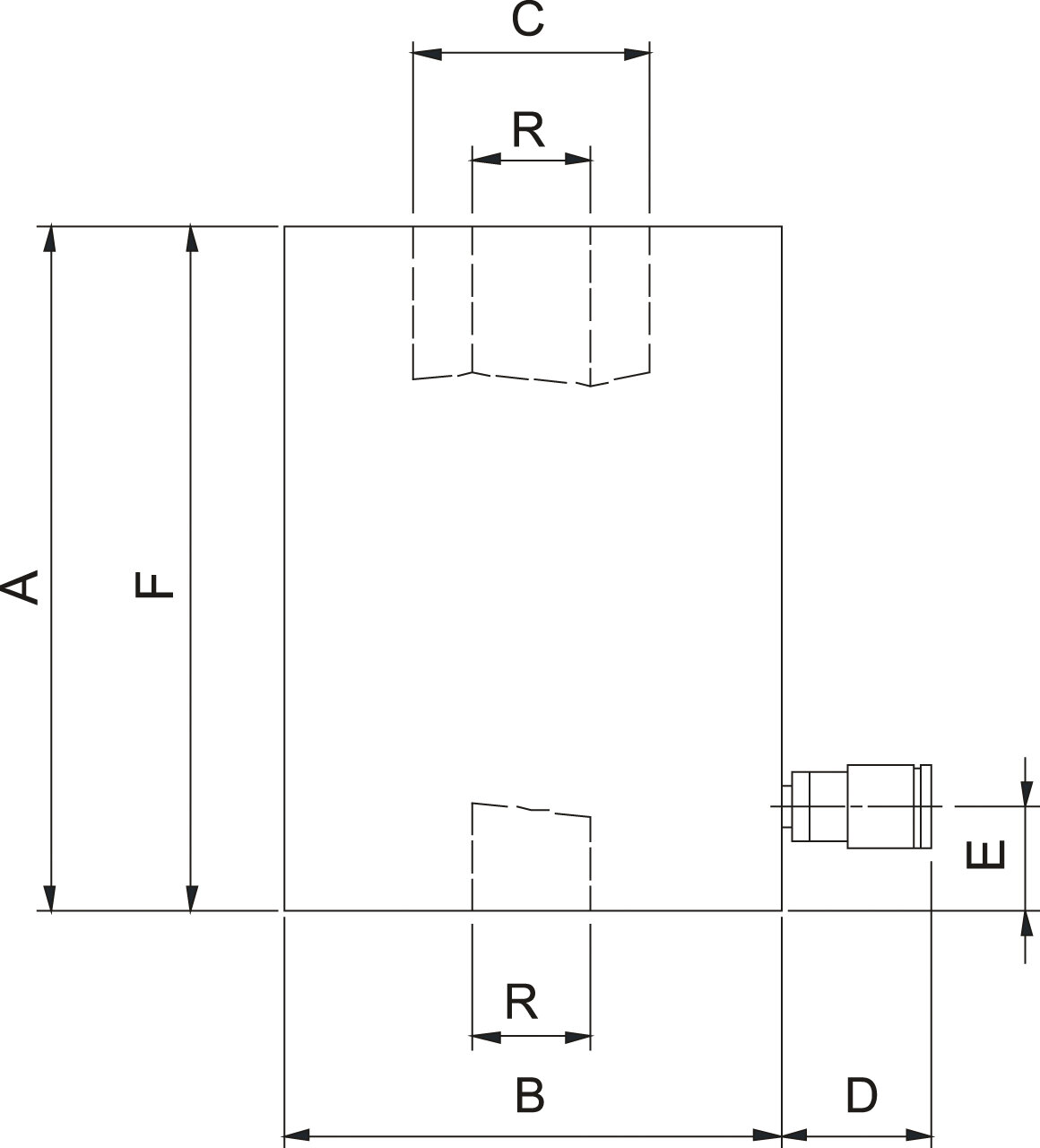

    Part Code Size Model tonnage tons stroke length
    mm
    Closed height
    mm
    A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    R
    mm
    Weight
    kg
    16.40100.111.053 120 HHJ 30 G 5 30 50 120 120 118 70 90 33 120 33 10
