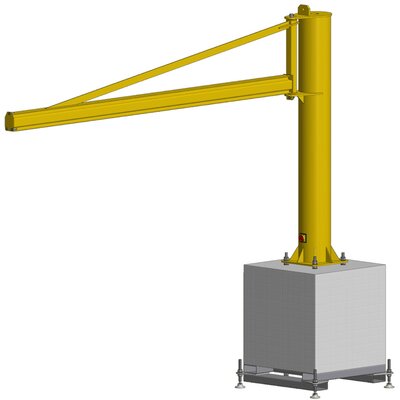

The jib crane PFTCmob is strictly reserved for an indoor use and built with a hollow section, PFTC allows 180° rotation. This jib crane cannot be motorized. Intended to be equipped with a manual or electric hoist, this model has a great versatility with his trolley hoist mounted on plastic rollers.
This jib crane is mounted on a movable concrete block provided. Displacement can be done by traveling crane (transport ring) or by forklift.
A full range of accessories is available.

Options

•Rotation slowing device.
•Rotation stops to weld onto the assembly, or adjustable.
•Single- or multipositions rotation lock.
•Outdoor use.
•Electric or manual hoist.
•Lockable main switch.


Select a row from the table below, then click the add to quote button
Cap.
kg
Span
m 2,0
Span
m 2,5
Span
m 3,0
Span
m 3,5
Span
m 4,0
Span
m 4,5
Span
m 5,0
Span
m 5,5
Span
m 6,0
CAD
150
250
500

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
