The DSP double swivel lifting point provides the option of adapting other lifting accessories: passing a cable or rope through it, placement of a ring with a large eye for using hooks that are disproportionate to the lifting ring,…

With its double swivel action, the DSP ring can be perfectly aligned with the sling. It consists of a steel ring that has a rotating range of 360°.

Features:

  • 360° rotation.
  • Swiveling under load.
  • 180° articulation.
  • Control anti-crack on 100% of the product.
  • Fatigue test.
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
  • Safety factor: 5:1
  • Grade: 8

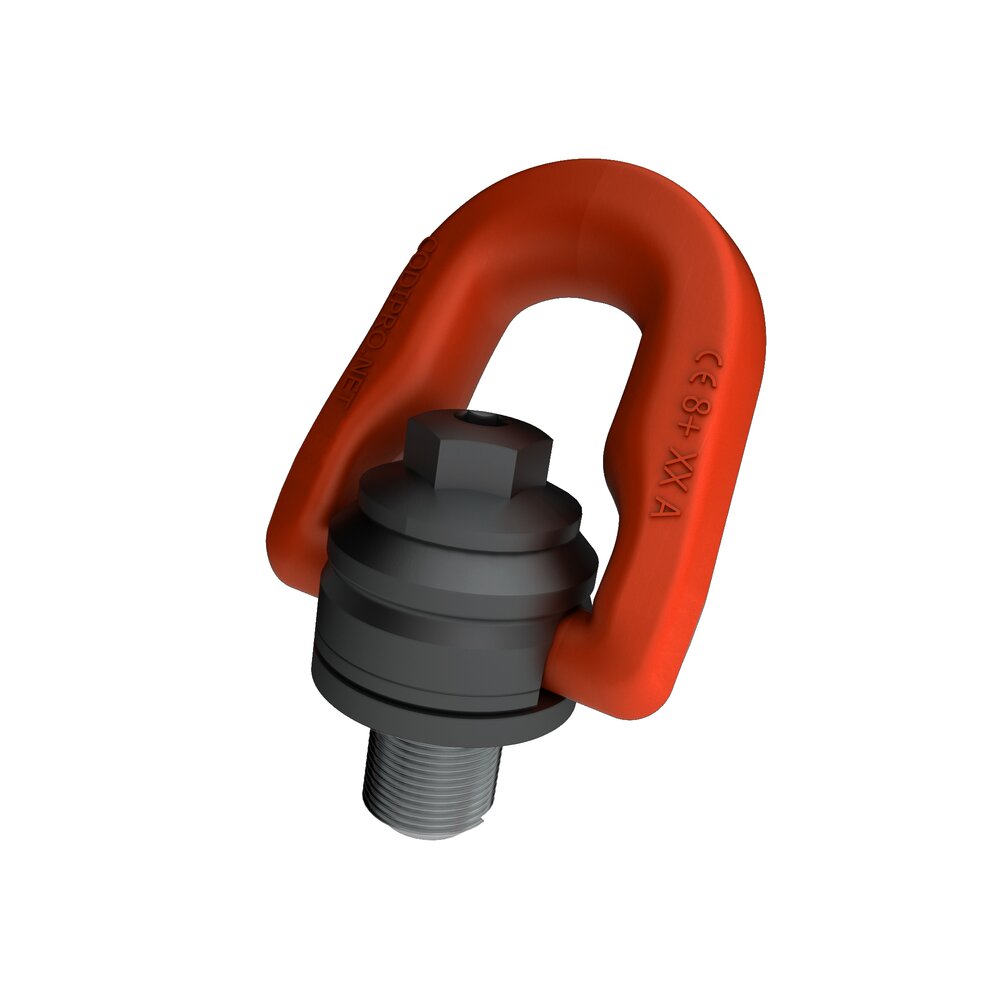

Product Picture 1
Select a row from the table below, then click the add to quote button

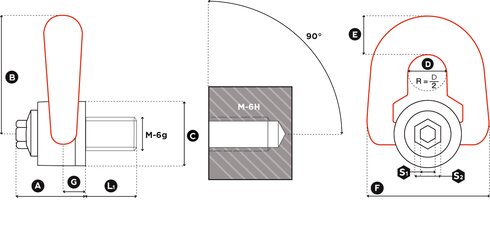

Part Code WLL
ton
diameter Torque
Nm
Standard
mm
S1
mm
S2
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Weight
kg
CAD
11.49DSP M 8 0,4 M 8 (x1,25) 6 14 8 16 33 56 30 19 19 58 9,5 0,3
11.49DSP M 10 0,7 M 10 (x1.50) 10 17 8 16 33 56 30 19 19 58 9,5 0,3
11.49DSP M 12 1,05 M 12 (x1.75) 15 21 8 16 33 56 30 19 19 58 9,5 0,3
11.49DSP M 14 1,4 M 14 (x2) 30 23 8 20 45 81 45 25 27 79 13 0,9
11.49DSP M 16 2 M 16 (x2) 50 27 8 20 45 81 45 25 27 79 13 0,9
11.49DSP M 18 2,3 M 18 (x2.5) 70 27 8 20 45 81 45 25 27 79 13 1
11.49DSP M 20 2,5 M 20 (x2.5) 100 30 8 20 45 81 45 25 27 79 13 1
Also available in UNC threads
