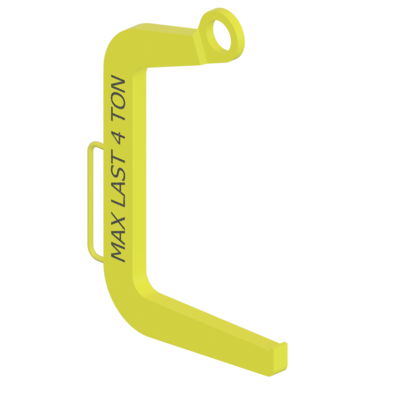

Coil Hook Type CKP


For small to medium loads and thin coils. Often used after the splitting of wider coils. For further information, see the introductory text above in the section on C-hooks.

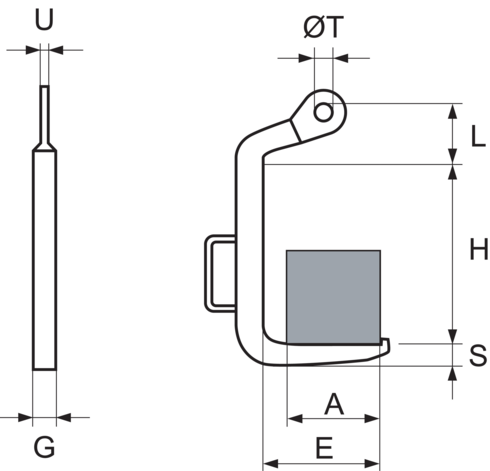

Design: Cut steel plate. The fork covers the entire coil width, and has a nose on the tip for additional safety. When unloaded, the hook hangs with the tip of the fork pointing upwards, which facilitates loading of the coil.

Proof: 1,5 x WLL.

  • Material: Plate of high-strength structural steel.
  • Marking: Type, working load limit, maximum coil width and CE marking.
  • Finish: Yellow painted.
  • Safety factor: 1,5 x WLL.
