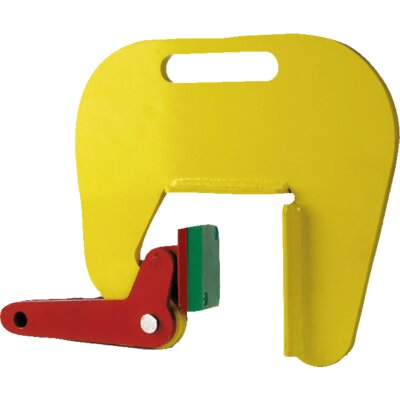

Pipe Lifting TBC - TBC-A

Lightweight clamp with pressure resistant plastic cam for vertical concrete pipe lifting

Application

  • For vertical lifting and transporting of concrete pipes and wells
  • Terrier TBC / TBC-A lifting clamps must always be used in pairs (or per three clamps)

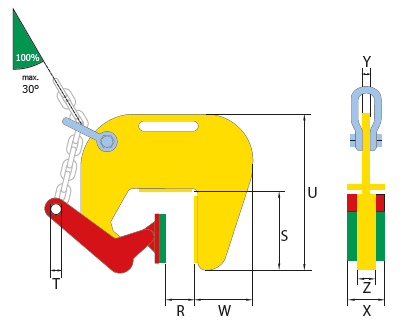

  • TBC jaw opening available from: 60 to 120 mm
  • TBC-A has an extra large jaw opening available from: 50 to 220 mm (adjustable in steps of 25 mm)
  • Working load limit (WLL) 1000kg
  • Other jaw openings available upon request

Features and benefits

  • The cam is covered with a special high quality pressure resistant plastic
  • Maintenance-friendly clamp, plastic pressure resistant cover is easy to change
  • Tough quality welded body
  • Lightweight design for easy handling
  • Marking: According to standard, CE-marked
  • Temperature range: –40°C up to 50°C
  • Standard: EN 13155
