The FE DSS lifting shackle  is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect line up with the lifting sling. The ring can swivel under the load. The ring swivels 180° and has a rotating range of 360°.

Features:

  • Swiveling under load
  • Usable for any kind of lifting operation
  • The tightening torque is stamped on all lifting rings in the GRADUP range.

Grade: GRADEUP (8+)

  • Material: High tensile steel
  • Marking: According to standard, CE-marked
  • Standard: EN 1677-1
    except grade/WLL
  • Safety factor: 5:1

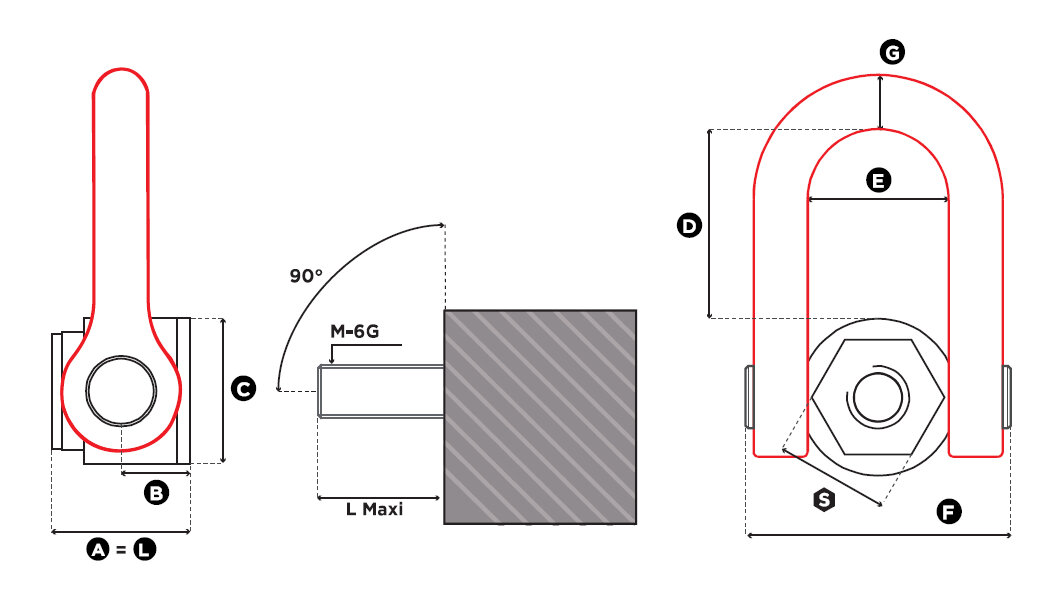

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Thread Torque
Nm
Weight
kg
CAD
11.42FE.DSS M 24 UP 4,5 M 24 (x3) 160 5,1 -
11.42FE.DSS M 27 UP 5,2 M 27 (x3) 200 5,1 -
11.42FE.DSS M 30 UP 7,5 M 30 (x3.5) 250 5,1
11.42FE.DSS M 33 UP 8 M 33 (x3.5) 250 5,1 -
11.42FE.DSS M 36 UP 10 M 36 (x4) 320 5,1
11.42FE.DSS M 39 UP 12 M 39 (x4) 320 10
11.42FE.DSS M 42 UP 13 M 42 (x4,5) 400 10 -
11.42FE.DSS M 45 UP 14,5 M 45 (x4,5) 400 10 -
11.42FE.DSS M 48 UP 17 M 48 (x5) 600 10
11.42FE.DSS M 52 UP 19 M 52 (x5) 600 10 -
UNC thread also available: from UNC 1" to UNC 2"
