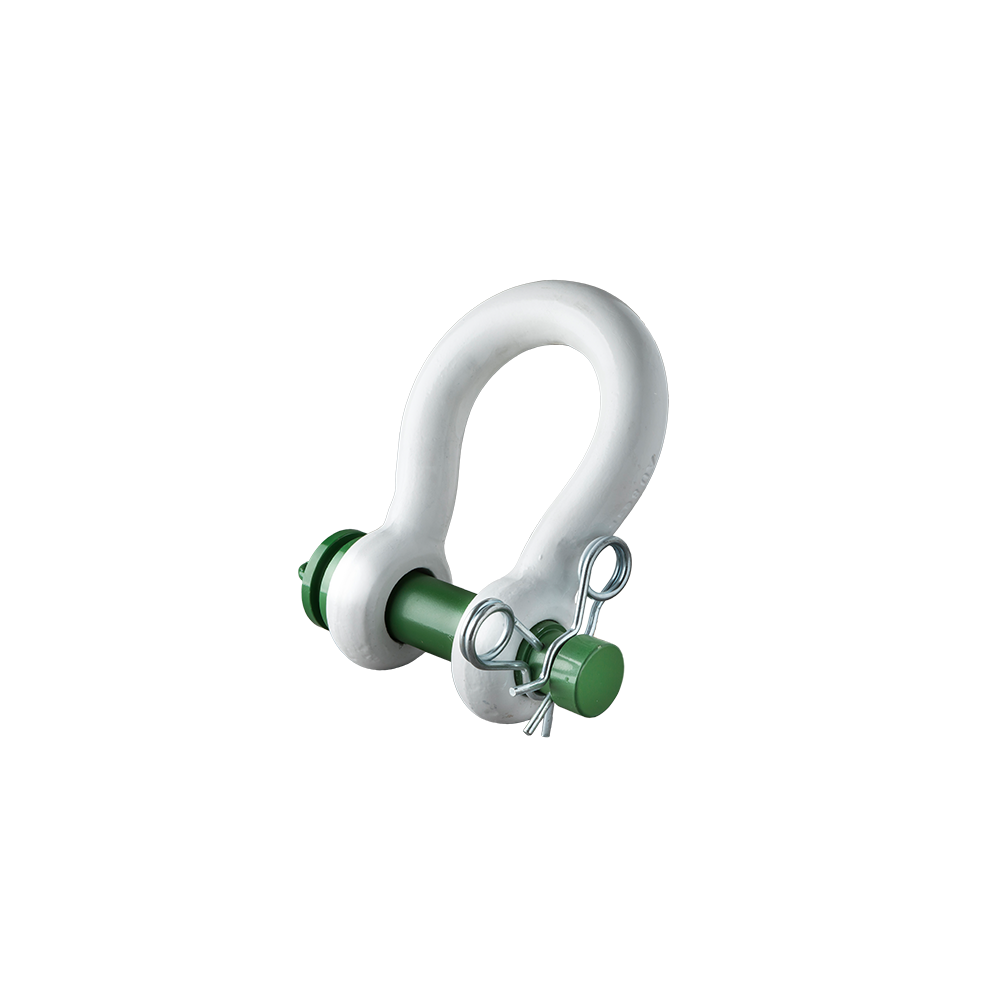

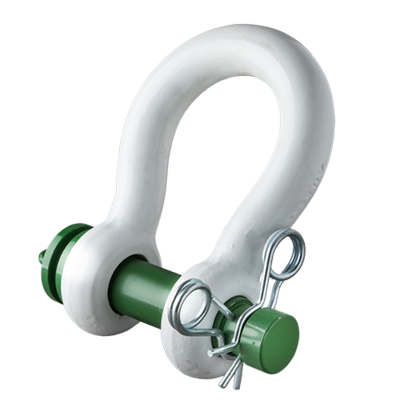

ROV Release Polar Shackles with Spring Pins P-5363

Bow release shackle with spring pins.

It is up to the user to attach the safety pins with wire ropes etc. and attaching
loops or monkey’s fists.
Standard delivery contains the shackle body, the shackle pin and 2 spring pins.

Safety factor: 7:1 up to WLL 42,5 ton. 6:1 for 55 and 85 ton

  • Material: Bow and pin alloy steel
  • Marking: According to standard
  • Temperature range: -40°C up to +200°C
  • Finish: Bow white painted, pin green painted
  • Note: for in-line use only
  • Grade: 8
