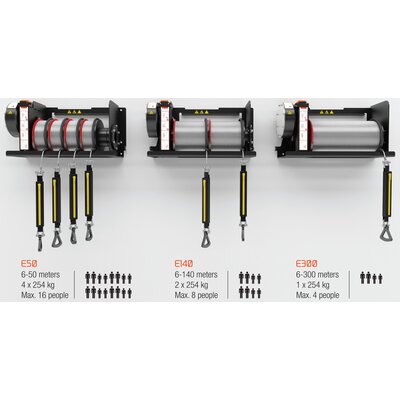

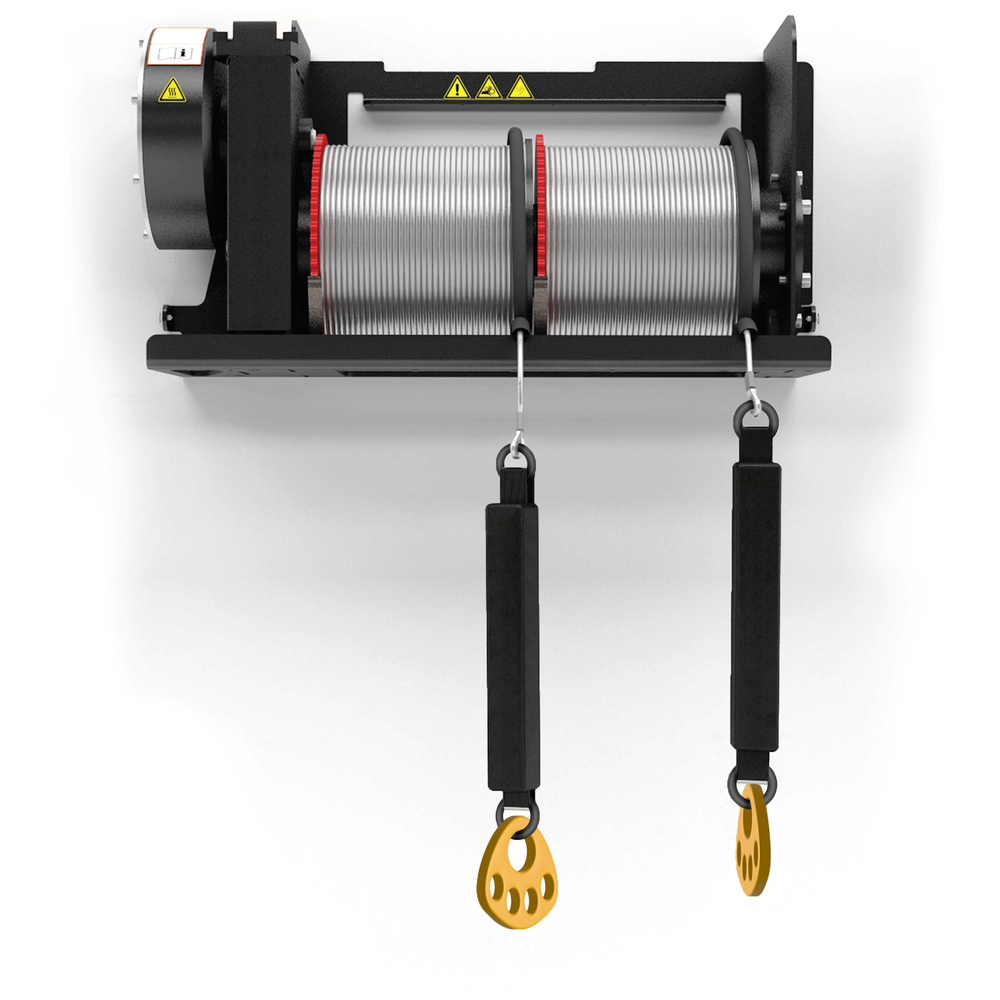

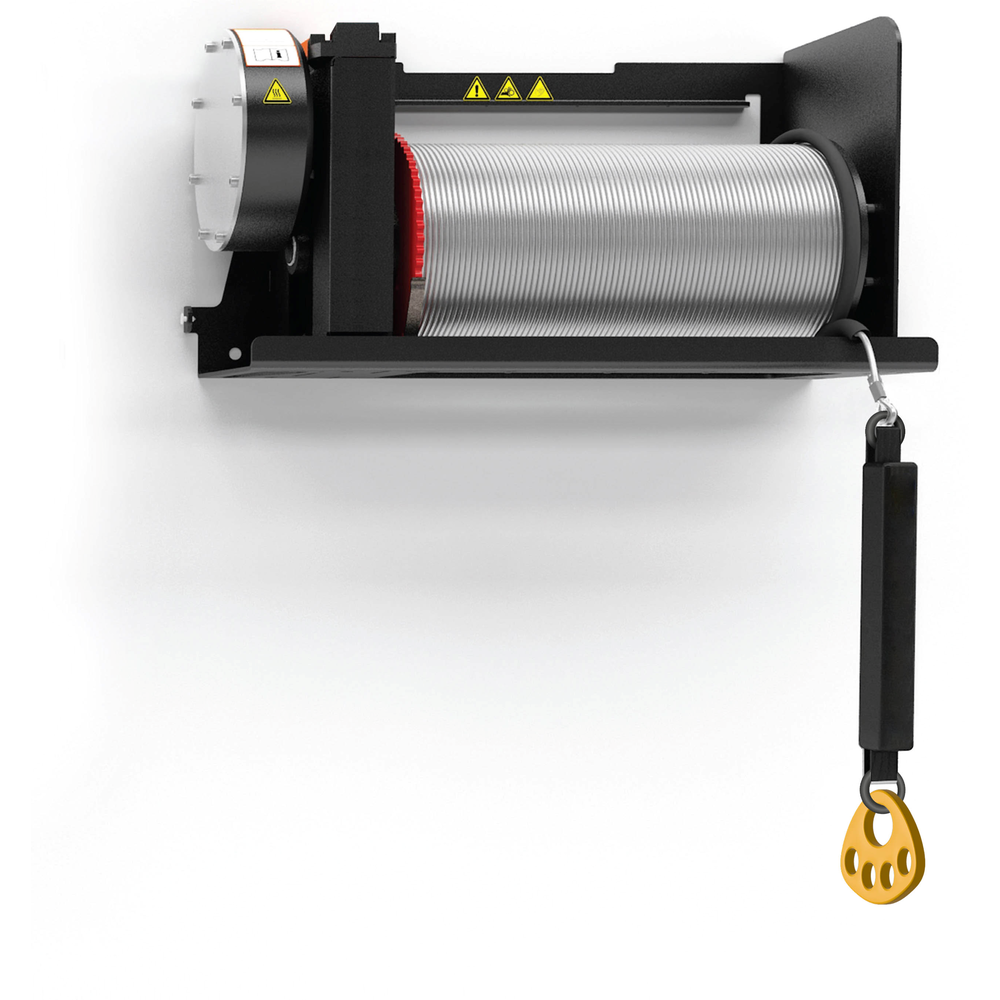

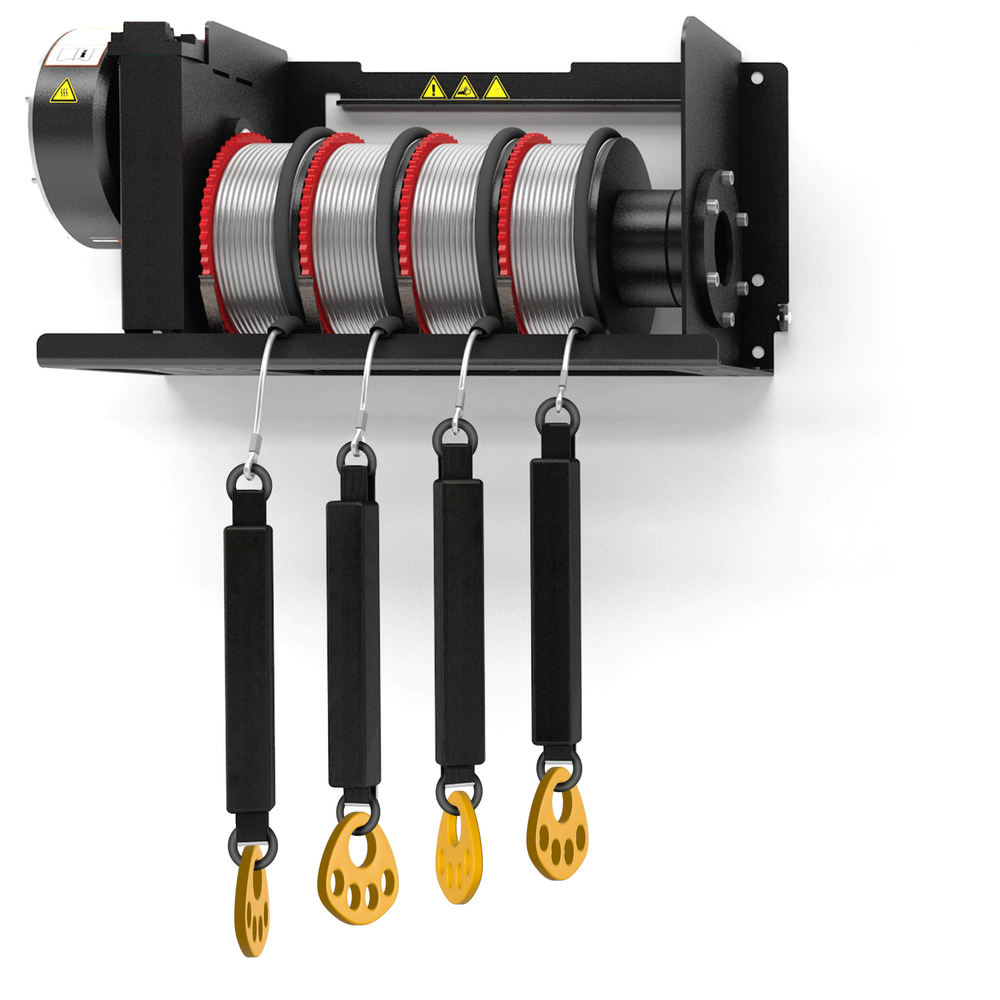

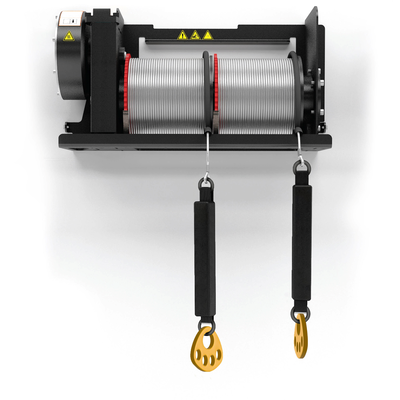

Evacuator is the only fireproof escape device for more peope and heights up to 300 mtr.
It is the most user friendly, suited for panic situations on high structures: Just click and go ... !
- Pre-installed at the escape area: Ready for immediate use in case of emergency.
- Controlled descent speed approx. 1 m/sec.
- Max. load per reel 254 kg > 2 to 3 adults at a time, or 2 adults + 2 kids.
- No electricity required. Works at all times.
- Installation inside or outside / weatherproof.
- Compact, easy to install and maintenance friendly.
- Long service life, cost efficient.
- Pricing competitive with traditional rope-ased descenders.
- High quality. Useful for any industrial or civic application.
- Compliant with EN-5038:

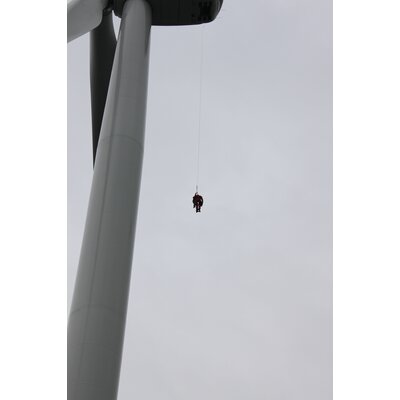

"The descent system has to be fireproof enough to allow escape from the nacelle to the ground in the event of fire, it shall be suitable for the number of persons to be evacuated".
Any ppe can be supplied together with the Evacuator.
