Multiconductor end feed boxes

End feed boxes are used for the connection of the feeding cable to the outer end of the Multiconductor system. All feed boxes are fitted with metric glands. It is possible to use extra glands and/or several diametre ranges from type EB40. End feed clamps are required for connection of copper conductors 125A or 160A.

End feed boxes:

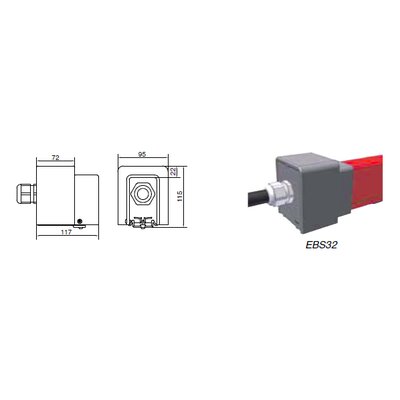

Type EBS32

Compact end feed box with cable gland M32, suitable for cables Ø10-Ø21 mm. Connecting screws M6 included.

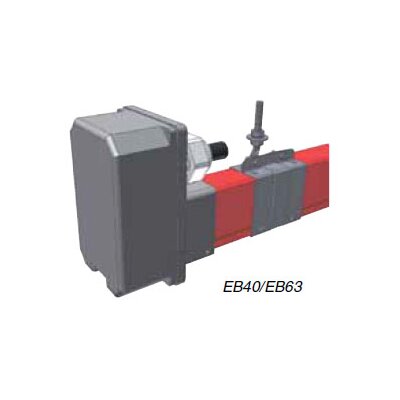

Type EB40
End feed box for with cable gland M40, suitable for cables Ø16-Ø28 mm. Connecting screws M6 included.
Type EB63
As end feed box EB40, but with cable gland M63, suitable for cables Ø30-Ø44,5 mm. Connecting screws M6 included.

End feed clamps:

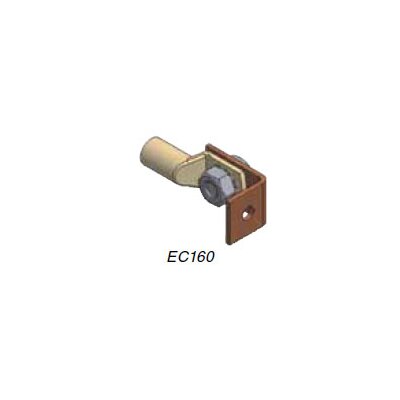

Type EC160
Required for connecting copper conductors 125A or 160A to the cable lug of the connection cable. To be ordered seperately.
