Algemeen: Bedieningskleppen

Kenmerken en voordelen:

  • Geschikt voor dubbelwerkende gereedschappen
  • Hendel met arretering in elke stand
  • Voorzien van drukgestuurde terugslagkleppen, voor vergrendeling van de last
  • 3-standen 4-wegklep
  • Aansluiting: 3/8” NPT inwendig (2x)
Selecteer een rij in onderstaande tabel, en klik daarna op "voeg toe aan jouw aanvraag"
Artikelnr. Type Omschrijving CAD
100.172.051 M 304 • For assembly on the varipump underneath adouble-acting valve (M 322, M 323, M324 orM 325)• This valve makes it possible to drive both singleand double acting tools with just one pump• Switch with A + B function (double-acting) or A(single-acting)
100.181.311 M 311 • Suitable for single-acting tools• Handle stops in each position• 3-position, 3-way Valve• Not in combination with a vari pump model(name) starting with 18 W• Connection 3/8” NPT female thread (2x)
100.181.322 M 322 • Suitbale for double-acting tools• Handle stops in each position• With pressure-controlled non-return valves forsecuring the load• 3-position 4-way Valve• Connection: 3/8” NPT female (2x)
100.181.323 M 323 • Suitable for double-acting tools• Handle with dead man’s function, automaticallygoes to “O” position• With pressure-controlled non-return valves forsecuring the load• 3-position, 4-way Valve• Connection: 3/8” NPT female (2x)
100.181.324 M 324 • Only suitable in combination with EC-versionVari pumps. Contact our sales department foradditional information• Suitable for double-acting tools. Valve withelectromagnetic control (24 VDC)• With pressure-controlled non-return valves forsecuring the load• 3-position, 4-way valve• Connection: 3/8” NPT female (2x)• Remote control, art no 100.151.060 (to beordered separately)• 4 buttons (on, off, lift and lower)
100.181.325 M 325 • Suitable for double-acting tools• Valve with air control. Only suitable incombination with air-powered Vari pumps• With pressure-controlled non-return valves forsecuring the load• 2-position 4-way Valve• Connection: 3/8” NPT female (2x)• Remote control, art no 100.161.004 (to beordered separately)• 2 buttons (lift and lower)

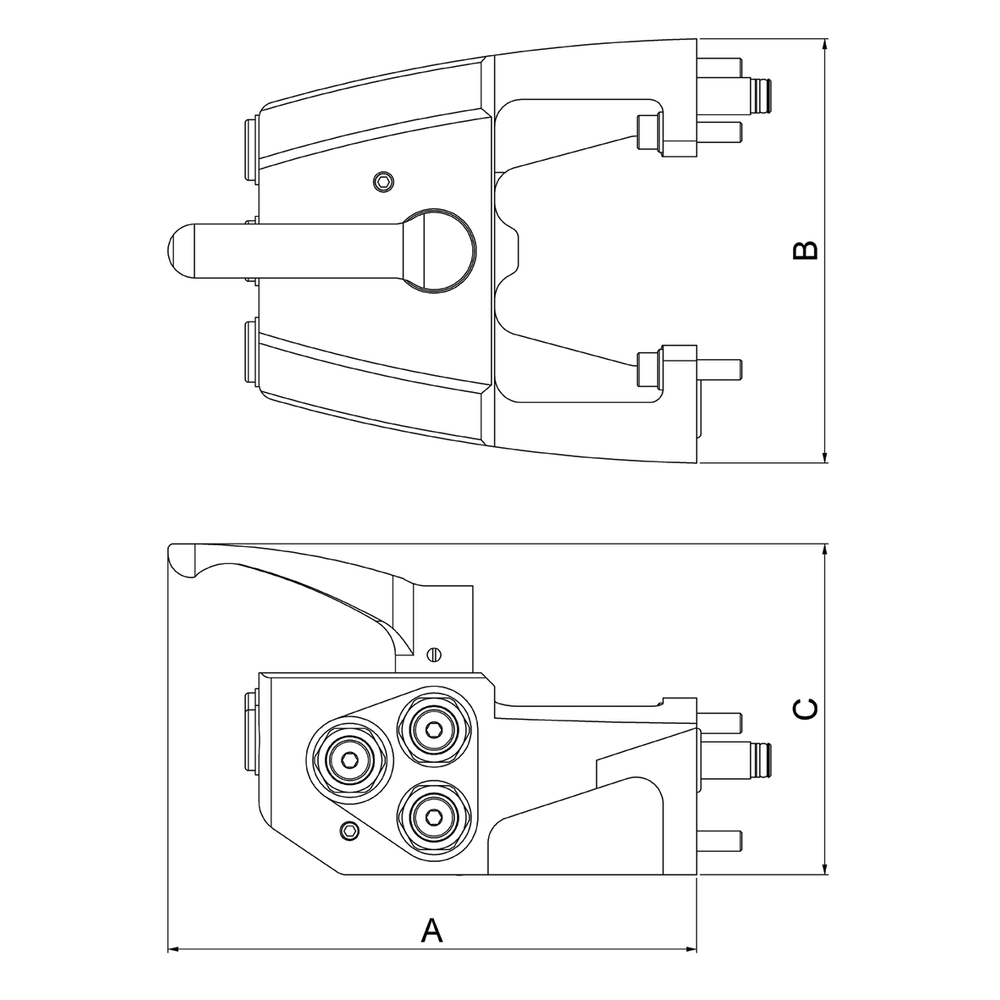

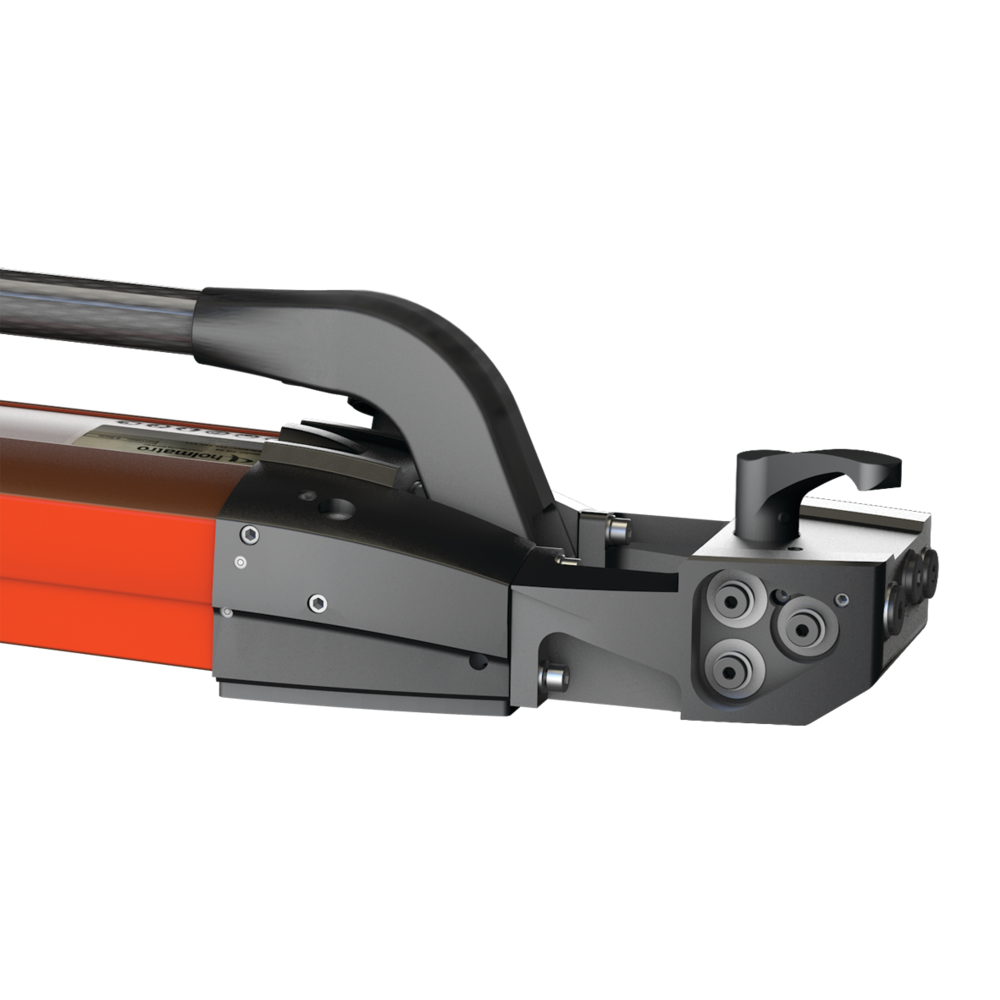

100.182.175 VM 43 L • Suitable for double-acting tools• Handle stops in each position• With pressure controlled non-return valves forsecuring the load• 3-position 4-way valve• Connection: 3/8” NPT female (2x)
