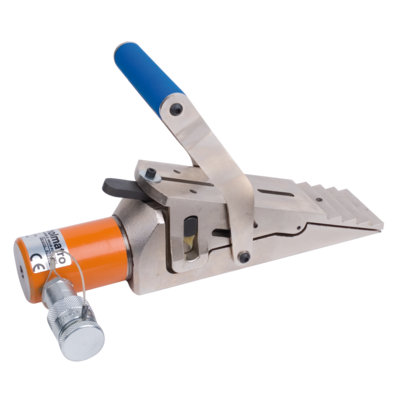

Vertical Lifting Wedge - Spring return HVLW 16 S 2

The Holmatro Vertical Lifting Wedge has a special construction enabling a strayed and unique vertical lifting movement to prevent tilting of the load. Extremely suitable for lifting operations with a limited insertion space.

  • Automatic mechanical retraction of lifting plate.
  • Minimum insertion space of 9 mm.
  • Vertical lifting stroke of 20 mm at each step.

Standard supplied with:

  • Safety block.
  • Step block.
  • Grease pistol.
  • Grease cartridge Molycote®.
  • Plastic carrying / storage box.

Applications:

  • lifting machines
  • spreading flanges
  • dismantling and assembly
  • adjustment and alignment.



  • Features: 100% vertical lifting movement; prevents misalignment of load.
