*Ratings using European standards. Contact REID for other standards.
Goods WLL: Up to 1000kg
Personnel WLL: Up to 500kg
3 Person fall arrest: EN795:1997 certified – as part of an EN363 compliant system.
ATEX: Suitable for use in atex zone 2 explosive atmospheres
Lightweight & portable
Easy use:
- Adaptable, multi-purpose trolleys - goods and personnel rated
- Load bearing, lockable castors for easy positioning (acop advises no gantry movement under load except where a competent person has undertaken a suitable risk assessment & method statement and has deemed appropriate)
Configurations: Range of beam lengths up to 4m and configurations available
Availability: 14 Days

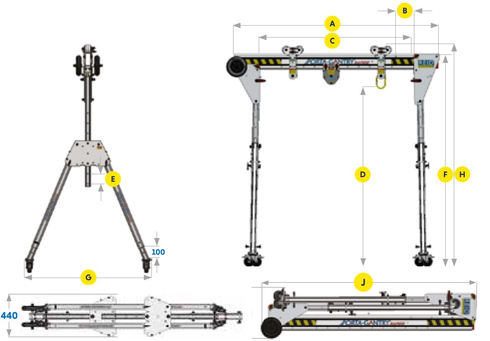

Dimensions (mm) | ||||||||||||||
Model | A Beam Length | B | C Min | C Max | D Min | D Max | E Min | E Max | F Min | F Max | G | H Min | H Max | J |
PGRS20 | 2000 | 2076 | 1100 | 1500 | 1738 | 1938 | 1914 | 2114 | 2064 | 2264 | 1158 | 1850 | 2050 | 2190 |
PGRS23 | 2300 | 2376 | 1200 | 1800 | 2376 | |||||||||
PGRS40 | 4000 | 4076 | 2700 | 3500 | 4076 | |||||||||
PGRM20 | 2000 | 2076 | 1100 | 1500 | 1642 | 2042 | 1818 | 2218 | 1968 | 2368 | 1215 | 1755 | 2155 | 2190 |
PGRM23 | 2300 | 2376 | 1200 | 1800 | 2376 | |||||||||
PGRM40 | 4000 | 4076 | 2700 | 3500 | 4076 | |||||||||
PGRT20 | 2000 | 2076 | 1100 | 1500 | 1916 | 2816 | 2092 | 2992 | 2242 | 3142 | 1586 | 2028 | 2928 | 2631 |
PGRT23 | 2300 | 2376 | 1200 | 1800 | 2631 | |||||||||
PGRT40 | 4000 | 4076 | 2700 | 3500 |
