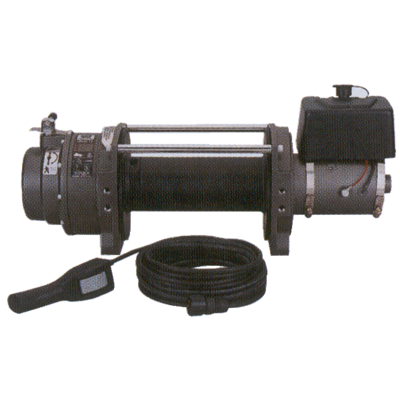

Warn Series 15 DC
Select a row from the table below, then click the add to quote button
Part Code Line speed 12V Motor
m/min
Line speed 24V Motor
Ft/min
Current draw 12V Motor M/min Current draw 24V Motor M/min First layer line pull
kg
CAD
16.2805-5051045 4,7 6,6 107 45
16.2805-5051045 3,2 3,9 229 114 1 350
16.2805-5051045 2,3 3,4 313 149 2 700
16.2805-5051045 1,6 2,8 397 200 4 100
16.2805-5051045 1,2 1,8 481 240 5 400
16.2805-5051045 1 1,3 525 295 6 818

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
