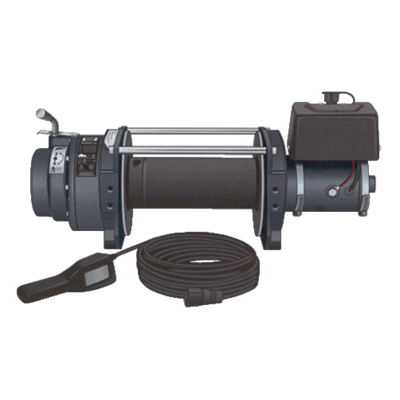

The hard pulling Series 12 DC features a weatherproof industrial contactor control pack, and heavy-duty remote for reliable performance.
The disc-brake is designed for extended power-out use and the motor is protected by a thermal overload switch.
Designed to meet SAE J706 and CE standards.
Warn Series 12 DC
Select a row from the table below, then click the add to quote button
Part Code Line speed 12V Motor
m/min
Line speed 24V Motor
m/min
Current draw 12V Motor Amps Current draw 24V Motor Amps First layer line pull CAD
12V: 16.2805-505104024V: 16.2805-5051041 4,7 7,9 107 56
12V: 16.2805-505104024V: 16.2805-5051041 3,2 3,8 229 120 1 360
12V: 16.2805-505104024V: 16.2805-5051041 2,3 2,8 313 160 2 700
12V: 16.2805-505104024V: 16.2805-5051041 1,6 2,3 397 200 4 100
12V: 16.2805-505104024V: 16.2805-5051041 1,2 2 481 240 5 400
