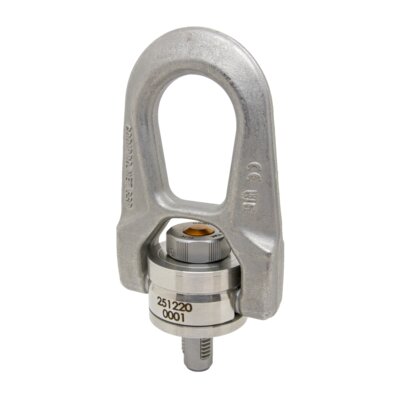

Quick Lift Double Swivel Ring SS QL DSR

  • Stainless steel

The QLR is a double swivel ring that allows particularly fast anchoring. At the push of a button, it can be fixed in the threaded hole in a matter of seconds. Its double swivel ensures a perfect alignment with the sling.

The QL.DSR saves up to 80 % of time compared to screwing in a conventional lifting ring. The system works purely mechanically and thus requires no complex maintenance.

The swivel lifting ring QL.DSR is made of gradup steel, which stands for a better quality of the used raw materials. It has higher lifting capacities than fixed rings and has a safety factor of 5, which means that its breaking load is five times greater than the capacity indicated in the technical data sheet.

Compliant to directive machine 2006/42/CE

  • Material: AISI 316L
  • Marking: According to standard, CE-marked, WLL , safety factor, individual traceability number (linked to Coditracer)
  • Temperature range: -20°C up to +200°C
  • Standard: EN 1677-1
    except grade
  • Safety factor: 5:1
