General: Double acting, compactair pump.


- Lightweight.
- Safe; when the air pressure is lost, the oil pressure is maintained.
- Spark-free; suitable for explosive rooms.
- Low-noise because of built-in silencer.
- Energy-saving; stops as soon as the maximum pressure has been reached
- Standard Supplied with compressed air connector.



  • Features: - Usable at any place because of compact construction.
  • Note: Unsuitable for lifting applications, because the pump has no load holding valve.
    Product Image 1

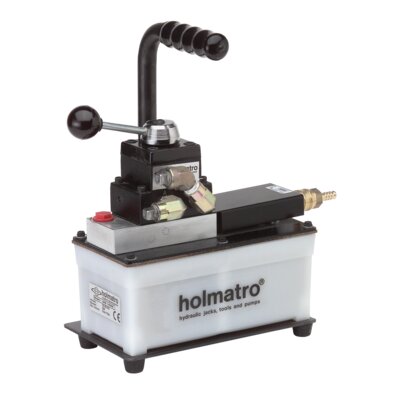

    Product Image 2
    Select a row from the table below, then click the add to quote button

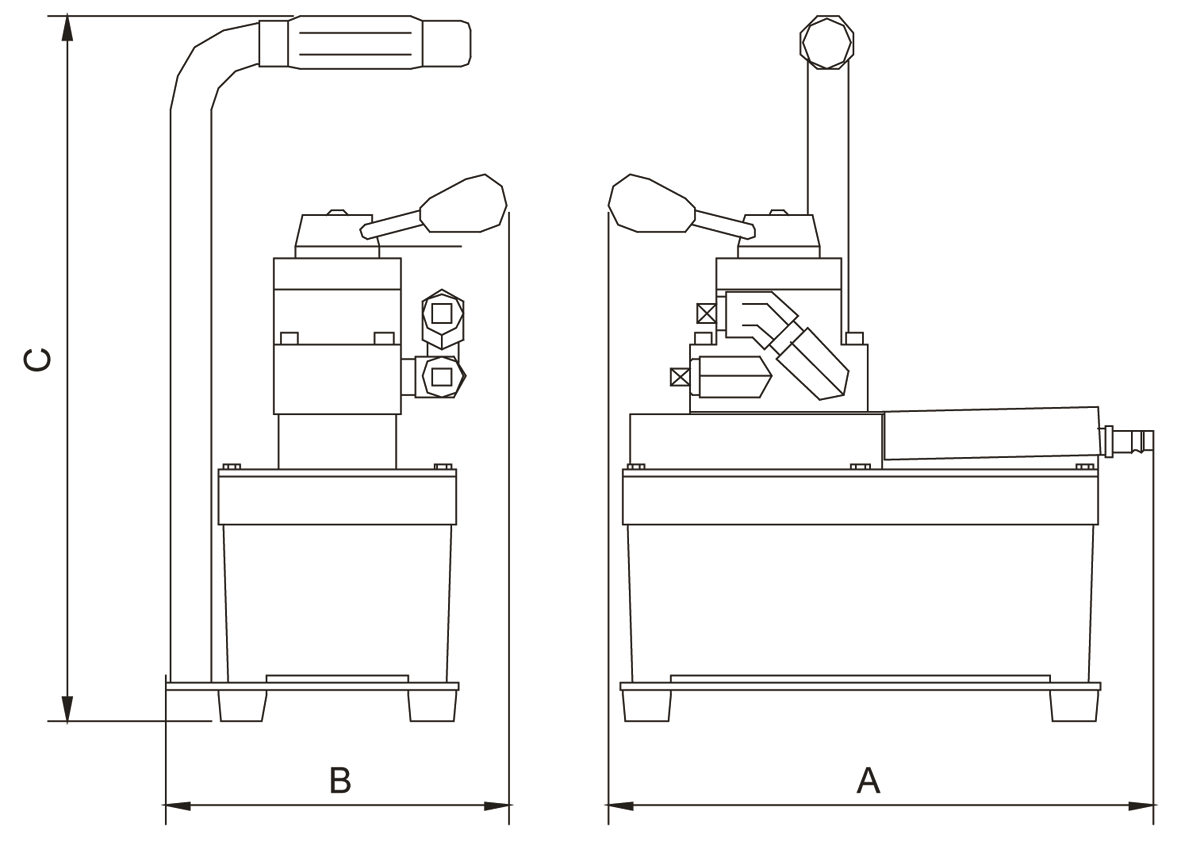

    Model max. working pressure
    bar/Mpa
    oil capacity cc connection max. air pressure
    bar/Mpa
    A
    mm
    B
    mm
    C
    mm
    Weight
    kg
    AHS 1400 D 720 / 72 1 400 3/8"NPT female 8.5 / 0.9 315 180 372 9,6
