General: Flange Spreaders model FLS.

Features and benefits:
- Safe; no flying off parts or sparks.
- Compact and lightweight.
- Easy to use.
- Two or more can be used for a more equal distribution of forces.

Standard supplied with:
- High Flow female coupler A 118.
- 60° Spreading wedge.
- Plastic carrying box, including high-grade grease Molycote®.

Available on request:
-
Spreading wedge with 30° angle.
- Flange spreader with opening larger than 210 mm.

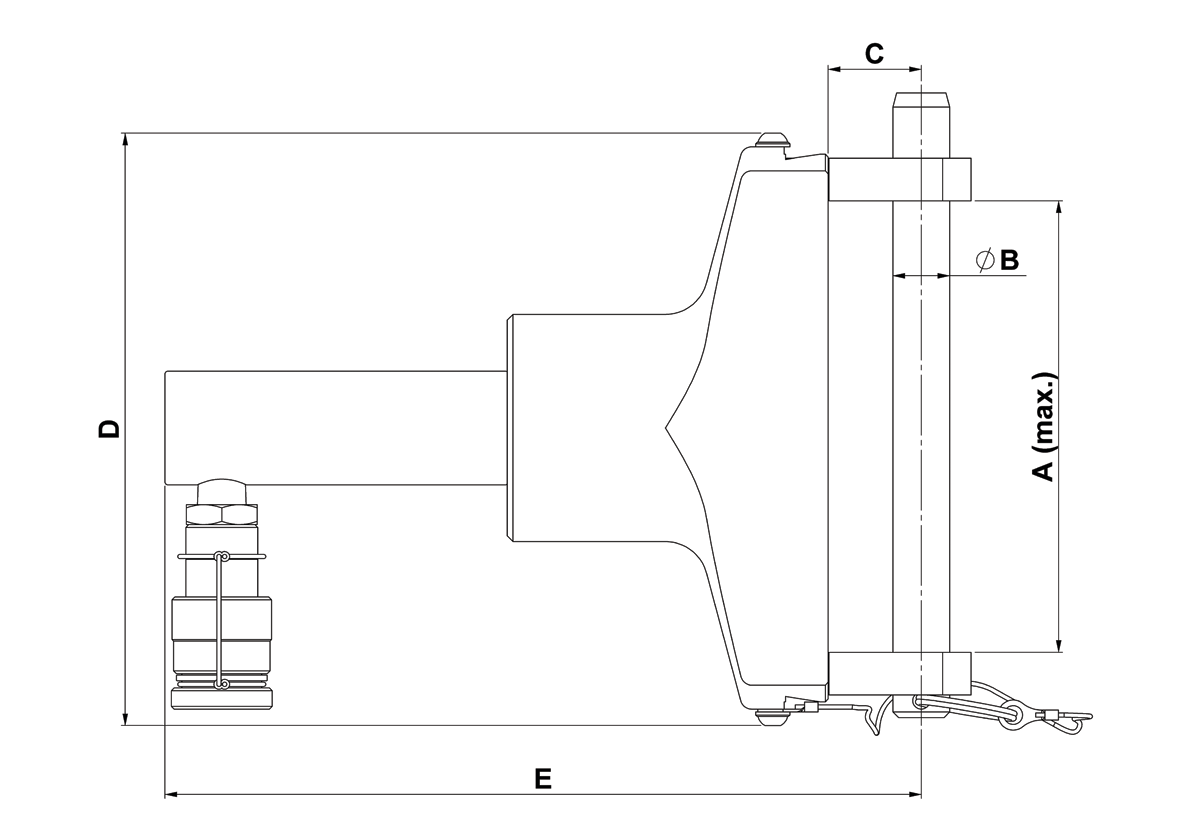

      Product Picture 1

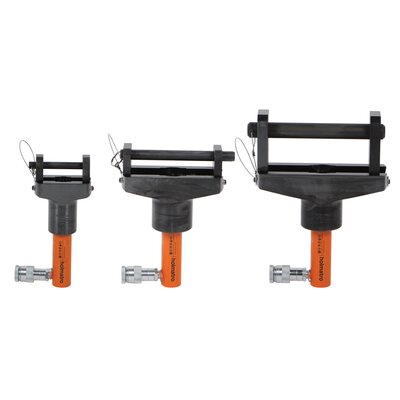

      Product Picture 2
      Select a row from the table below, then click the add to quote button
      Model connection max. working pressure
      bar / Mpa
      return type required oil content (effective) cc flange opening 30° wedge (min.)
      mm
      flange opening 30° wedge(max.)
      mm
      flange opening 60° wedge(min.)
      mm
      flange opening 60° wedge (max.)
      mm
      spreading force 30° wedge kN/t spreading force 60° wedge kN/t weight, incl. case
      kg
      A
      mm
      B
      mm
      C
      mm
      D
      mm
      E
      mm
      Weight
      kg
      FLS 85 M A 118 720 / 72 spring 53 2 25 3 32 73.5 / 7.5 34.3 /3.5 6,3 85 15 30 129 264 4,5
      FLS 170 M A 118 720 / 72 spring 53 2 25 3 32 73.5 / 7.5 34.3 /3.5 9,5 170 20 32,8 209 266 8
      FLS 210 M A 118 720 / 72 spring 53 2 25 3 32 73.5 / 7.5 34.3 /3.5 11 21 30 75 260 309 9,5
